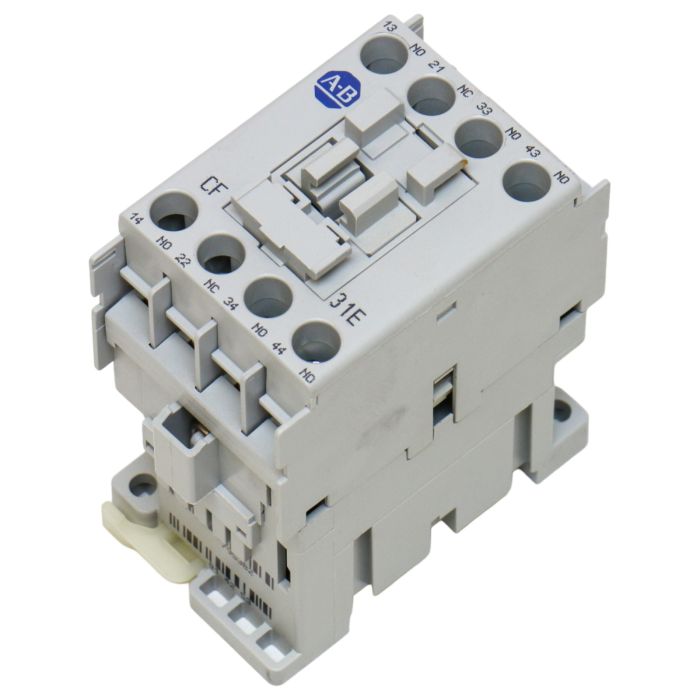

Industrial Relay,230V 50/60 Hz,Screw Terminals,Standard Contact,3 NOC & 1 NCCTechnical Specifications, Electrical, Voltage type for actuating AC, Interface No, Rated control supply voltage at DC 0 V, Rated control supply voltage at AC 50 Hz 230 V, Rated control supply voltage at AC 60 Hz 230 V, Mounting method DIN-rail/screw, Rated frequency 50/60 Hz, DC, Electrical life cycle Auxiliary/pneumatic timer contact (front mounted): 1500000 @ 240V/3 A, AC-15, Contact rating Side mounted auxiliary contacts: NEMA A600, Q600, With LED indication No, Rated impulse strength (Uimp) 6 kV, Mechanical, Weight 390 g, AC coil, Connection type Screw terminals, Operating time, opening delay 70...125 ms with external diode, Shock resistance IEC 60068-2: half sinusoidal shock 11 ms, 30 G (in 3 directions), Mechanical life operations 15000000, Auxiliary/pneumatic timer contact (front mounted): 5000000, Suitable for manual operation No, Vibration resistance IEC 60068-2: static >2 G, in normal position no malfunction <5 G, Environmental, Altitude 2000 m above mean sea level, per IEC 60 947-4, Ambient temperature Storage: -55...80 °C (-67...176 °F)

• Industrial Relay
• 230V 50/60 Hz
• Screw Terminals
• Standard Contact
• 3 NOC & 1 NCC Technical Specifications
• Electrical
• Voltage type for actuating AC
• Interface No
• Rated control supply voltage at DC 0 V
• Rated control supply voltage at AC 50 Hz 230 V
• Rated control supply voltage at AC 60 Hz 230 V
• Mounting method DIN-rail/screw
• Rated frequency 50/60 Hz, DC
• Electrical life cycle Auxiliary/pneumatic timer contact (front mounted): 1500000 @ 240V/3 A, AC-15
• Contact rating Side mounted auxiliary contacts: NEMA A600, Q600
• With LED indication No
• Rated impulse strength (Uimp) 6 kV
• Mechanical
• Weight 390 g
• AC coil
• Connection type Screw terminals
• Operating time, opening delay 70...125 ms with external diode
• Shock resistance IEC 60068-2: half sinusoidal shock 11 ms, 30 G (in 3 directions)
• Mechanical life operations 15000000, Auxiliary/pneumatic timer contact (front mounted): 5000000
• Suitable for manual operation No
• Vibration resistance IEC 60068-2: static >2 G, in normal position no malfunction <5 G
• Environmental
• Altitude 2000 m above mean sea level, per IEC 60 947-4
• Ambient temperature Storage: -55...80 °C (-67...176 °F)

700-CF310KF Allen-Bradley is a reliable industrial item that can be purchased at PLC2Day. This high-quality product from Allen-Bradley is suitable for various industrial applications. It is designed to meet the demanding requirements of the industry. With its exceptional performance and durability, the 700-CF310KF is a preferred choice for professionals in the field. Get your hands on this top-notch item from Allen-Bradley at PLC2Day and experience its excellence in your industrial operations.
