Allen-Bradley PanelView 600 HMI

Description

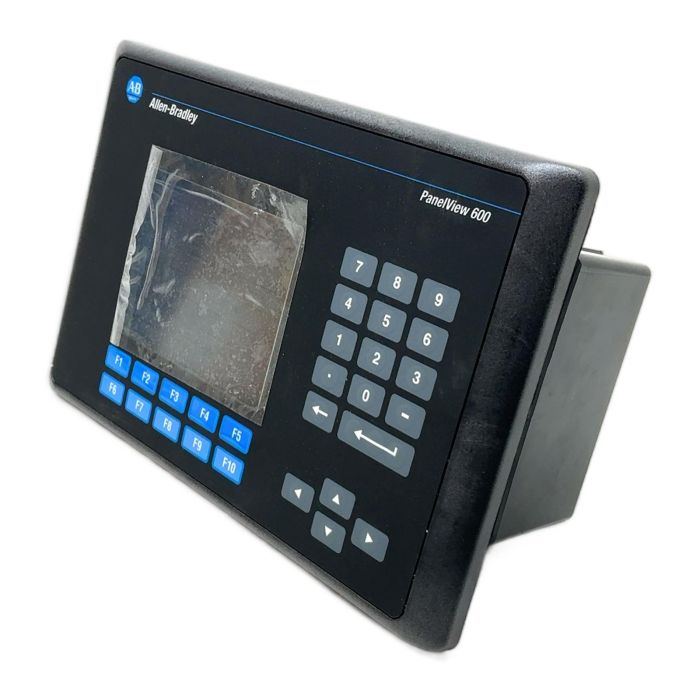

The Allen-Bradley 2711-B6C2L1 is a PanelView 600 operator terminal. This unit provides a graphical interface for machine operators to monitor and control industrial processes. It features a 5.7-inch color active-matrix TFT display with both keypad and touchscreen capabilities for versatile operation. This model is powered by 24V DC and communicates over a DH-485 network, making it a perfect drop-in replacement or spare for existing automation systems. The item is new old stock, in its original packaging with mounting hardware and documentation.

Specifications

• Manufacturer: Allen-Bradley
• Series: PanelView 600
• Model: 2711-B6C2L1
• Input Voltage: 24V DC, 24W
• Display: 5.7-inch Color TFT
• Input Method: Keypad and Touch Screen
• Communication Port: DH-485
• Firmware: FRN 4.46
• Enclosure Rating: NEMA 4X, 12, 13 (Indoor use)

Label Info

• CAT: 2711-B6C2L1
• SER: C
• FRN: 4.46
• Date of Manufacture: 2008/05/06

Application

This HMI is widely used in various industries including manufacturing, automotive, and food and beverage for machine control, process visualization, and data entry on legacy systems running on the DH-485 protocol.

Country of Origin

Made in the U.S.A.

CO2 Impact

Choosing this surplus unit over a new one prevents the emission of approximately 80.0 kg of CO2, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. It is a new old stock (NOS) item, ensuring reliability and longevity. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What software is required to program the 2711-B6C2L1?

The 2711-B6C2L1 is programmed using Rockwell's PanelBuilder32 software. It is important to ensure you have a version compatible with the terminal's firmware (FRN 4.46).

Is the DH-485 communication protocol compatible with modern networks like EtherNet/IP?

No, DH-485 is a legacy serial protocol. To connect to an EtherNet/IP network, you would need a protocol converter or gateway, such as a 1761-NET-ENI or a similar device.

Can the backlight (CCFL) be replaced on this model?

Yes, the backlight is a field-replaceable component. However, the replacement requires careful disassembly, and sourcing new original lamps for this obsolete model can be challenging.
