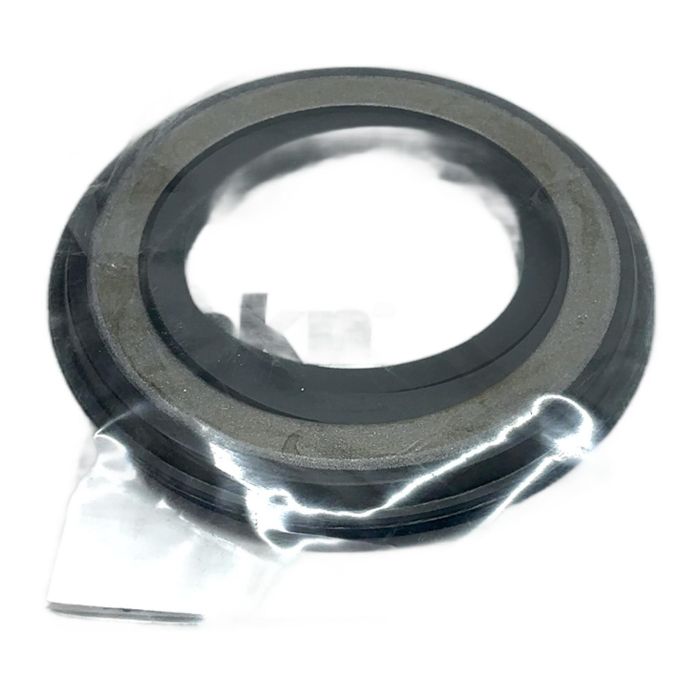

akn TSNX 513 A Taconite Seal for Bearing Housings

Description

The akn TSNX 513 A is a heavy-duty taconite seal, specifically engineered for split plummer block housings operating in highly contaminated environments. This multi-stage labyrinth seal effectively prevents the ingress of abrasive dust, dirt, and moisture while reliably retaining lubricant. It is an essential component for maximizing bearing service life in applications like conveyors, mills, and fans.

Specifications

• Manufacturer: akn
• Type Number: TSNX 513 A
• Product Type: Taconite Seal
• Shaft Diameter: 60 mm
• For Housing Series: 513 (e.g., SNL 513)
• Sealing Type: Multi-stage labyrinth with V-ring

Label Info

• Brand: akn
• Model: TSNX 513 A
• Identifier: H247

Application

This seal is ideal for heavy industrial sectors including mining, cement production, pulp and paper, and steel manufacturing, where equipment is exposed to severe contamination.

Country of Origin

Made in Italy.

CO2 Impact

Choosing this pre-owned seal over a new one prevents the emission of approximately 1.04 kg of CO2, contributing to a more sustainable industrial operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The TSNX 513 A is designed to work with both grease and oil lubrication. For optimal performance, the labyrinth passages should be periodically purged with grease to create an additional barrier against contaminants.

Taconite seals are primarily designed for low to moderate speed applications due to their contact V-ring seal. For specific speed limits, it is best to consult the manufacturer's technical documentation based on your application's operational parameters.

The primary advantage is its superior protection in heavily contaminated environments. The multi-stage labyrinth design creates a much more difficult path for contaminants to enter the bearing housing compared to simpler seal types, significantly extending bearing life.
