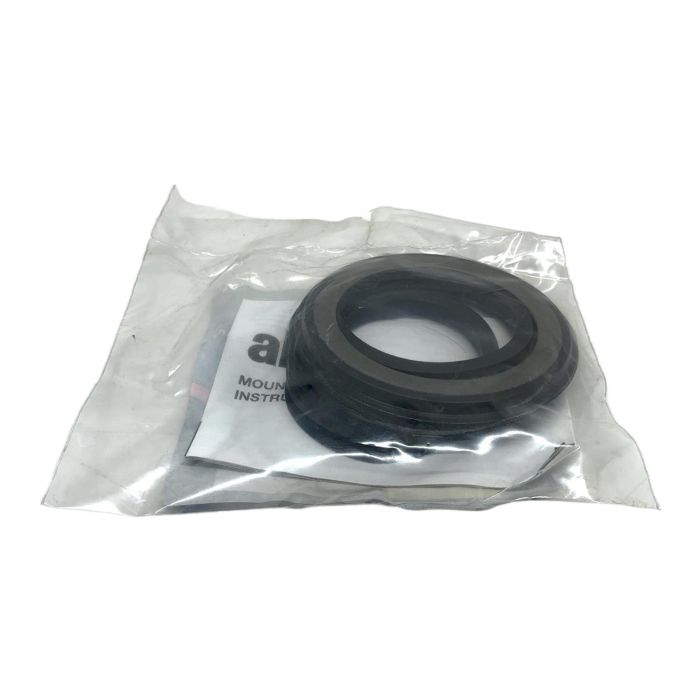

AKN Taconite Seal Kit TSNX 513 A for Bearing Housings

Description

This is the TSNX 513 A, a heavy-duty Taconite seal kit from AKN, designed to provide maximum protection for bearings in highly contaminated environments. The multi-stage labyrinth design, combined with a V-ring, effectively prevents the ingress of dust, dirt, and moisture, ensuring extended bearing life and reliability in demanding applications.

Specifications

• Manufacturer: AKN
• Part Number: TSNX 513 A
• Product Type: Taconite Seal Kit
• Compatible Housing Size: 513 series (e.g., SNL 513)
• Sealing Method: Labyrinth seal with V-ring
• Material: Steel and NBR (Nitrile Butadiene Rubber)

Label Info

• Brand: akn
• Model: TSNX 513 A
• Identifier: H247

Application

Ideal for use in industries with severe operating conditions, such as mining, cement production, agriculture, and paper manufacturing, where bearings are exposed to high levels of contamination.

Country of Origin

Germany

CO2 Impact

Choosing this reused seal kit over a new one saves approximately 5.0 kg of CO2, which is comparable to the emissions from driving a standard car for 25 kilometers.

Availability

In stock. Ships immediately. Order now from PLC2Day for expert support and fast delivery.

FAQ

The TSNX 513 A is designed for plummer block housings of the 513 series, such as the common SNL 513, SNH 513, or SE 513. It is crucial to match the seal size to the housing size number.

A Taconite seal offers significantly superior protection in highly contaminated environments. Its multi-stage labyrinth design, combined with a V-ring, creates a complex path that effectively blocks both solid particles (dust, dirt) and liquids (water, slurry), whereas simpler seals may fail under such conditions.

Yes, the space within the labyrinth of the Taconite seal should be filled with grease. This grease acts as an additional barrier against contaminants. The seal is typically equipped with a grease nipple to allow for periodic re-greasing to purge old grease and contaminants.
