AKN POM 151725 Plain Bearing Bushing 15x17x25mm

Description

This is a set of high-performance POM composite plain bearings from AKN, part number POM 151725. These wrapped cylindrical bushings are designed for maintenance-free operation under demanding conditions. The composite structure, consisting of a steel backing, a sintered bronze layer, and a POM (Polyoxymethylene) sliding surface, provides excellent low-friction performance and high wear resistance. They are suitable for applications involving rotating, oscillating, or linear movements.

Specifications

• Inner Diameter (ID): 15 mm
• Outer Diameter (OD): 17 mm
• Length: 25 mm
• Material: Steel-backed POM composite
• Standard: Conforms to ISO 3547 / DIN 1494

Label Info

• Brand: AKN
• Model: POM 151725
• Description: GLIJLAGERBUS
• Article Number: 03435521

Application

These bushings are widely used in various industrial sectors, including automotive, agricultural machinery, construction equipment, and general mechanical engineering. They are ideal for applications where lubrication is difficult or not desirable.

CO2 Impact

Choosing these reused plain bearings over new ones prevents the emission of approximately 0.2 kg of CO2. This saving is a result of avoiding the energy-intensive production of new steel and composite materials.

Availability

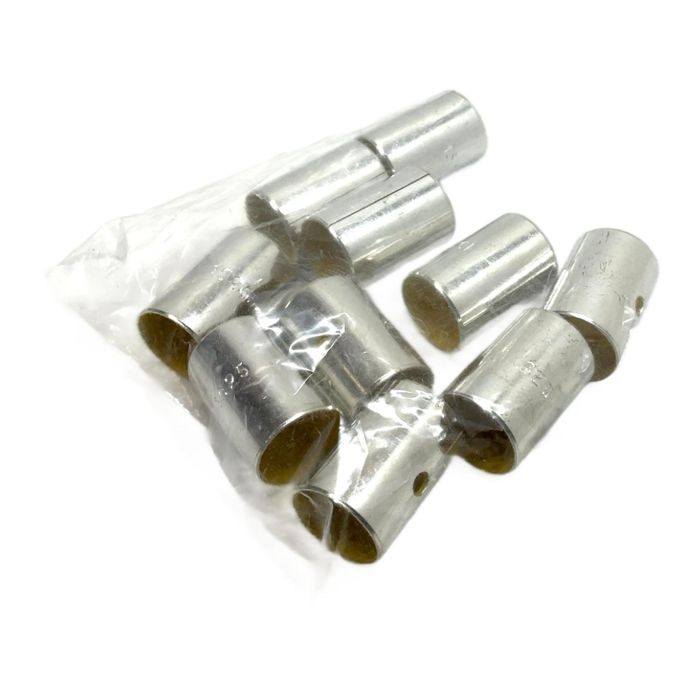

This product is in stock and available for immediate dispatch. Each unit consists of a bag of multiple bushings as pictured. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does 'POM' stand for and what are its key properties?

POM stands for Polyoxymethylene, an engineering thermoplastic known for its high stiffness, low friction, and excellent dimensional stability. In these bearings, it serves as a self-lubricating sliding layer.

Is initial lubrication required for these bushings?

No, they are designed for dry running conditions. However, an initial lubrication upon assembly can help to reduce friction and wear, potentially extending the service life, especially in boundary-lubricated applications.

What is the typical operating temperature range for these POM composite bushings?

These bearings can typically operate in a temperature range from -40 deg C to +110 deg C (continuous), with short-term peaks up to 130 deg C.
