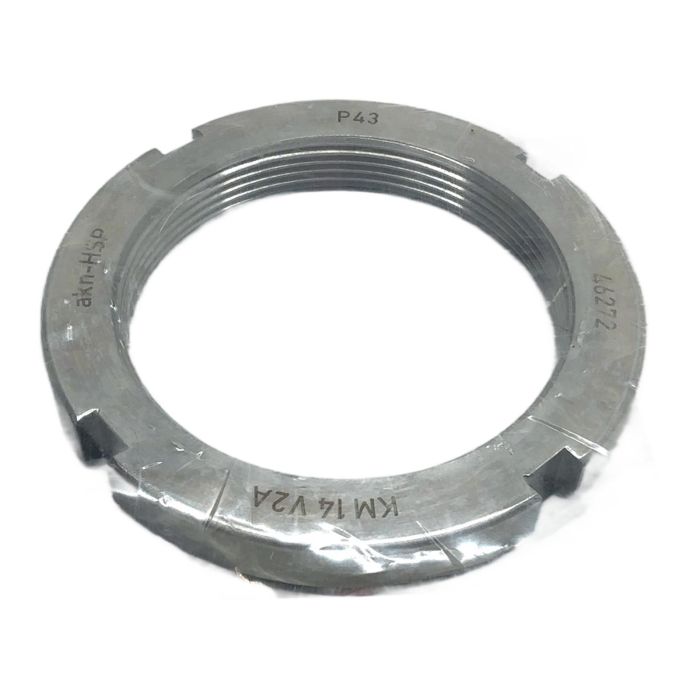

akn KM 14 V2A Stainless Steel Lock Nut

Description

This is a KM 14 series lock nut, also known as a bearing or shaft nut, manufactured by akn. It is designed according to DIN 981 standards for locating bearings and other components onto a shaft or adapter sleeve. Made from V2A/SS stainless steel, this nut provides superior resistance to corrosion and is suitable for use in harsh or hygienic environments.

Specifications

• Manufacturer: akn
• Type: KM 14 Lock Nut (DIN 981)
• Thread Size: M70x2
• Material: Stainless Steel (V2A / SS)
• Outer Diameter: 95 mm
• Width: 14 mm
• Number of Slots: 4

Label Info

• Brand: akn
• Model: KM 14 V2A (on part), KM 14 SS (on bag)
• Other Markings: P43, 46272, H036

Application

Commonly used in mechanical engineering, agricultural machinery, and industrial gearboxes to secure bearings, ensuring they are correctly positioned and preventing axial movement. The stainless steel construction makes it particularly suitable for the food and beverage, pharmaceutical, and marine industries.

Country of Origin

This product is typically manufactured in Germany.

CO2 Impact

Opting for this pre-owned component avoids the production of a new one, saving an estimated 0.88 kg of CO2. This saving is comparable to the emissions from over 100 smartphone charges.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What is the difference between the "V2A" marking on the nut and "SS" on the package?

Answer:
Both markings refer to stainless steel. V2A is a specific German grade (1.4301), while SS is a general abbreviation for Stainless Steel. For this component, they can be considered functionally identical, indicating excellent corrosion resistance.

Question?
Which tool is required to tighten this KM 14 lock nut correctly?

Answer:
This nut is designed to be used with a hook spanner (also known as a C-spanner) that fits the slots on the outer diameter. For a KM 14 nut, the appropriate spanner size is typically designated as HN 14 or an equivalent adjustable hook spanner.

Question?
What is the purpose of a lock washer with this type of nut?

Answer:
A KM series lock nut is typically used with a corresponding MB series lock washer (e.g., MB 14). The washer has an inner tab that fits into a keyway on the shaft and multiple outer tabs. After tightening the nut, one of the outer tabs is bent into a slot on the nut to prevent it from loosening due to vibration or rotation.
