AKN KM 14 SS Stainless Steel Lock Nut

Description

This is a KM 14 SS lock nut manufactured by AKN. As a key component in mechanical assemblies, this nut is used to locate bearings and other components onto a shaft, as well as to facilitate mounting and dismounting. The 'SS' designation, along with the 'V2A' marking, indicates it is made from stainless steel, providing superior corrosion resistance compared to standard steel nuts. It is designed to be used in conjunction with an MB 14 lock washer for a secure, anti-loosening connection.

Specifications

• Manufacturer: AKN
• Part Number: KM 14 SS / 03431831
• Type: Bearing Lock Nut (DIN 981)
• Thread Size: M70x2
• Outer Diameter: 95 mm
• Width: 14 mm
• Material: Stainless Steel (V2A / 1.4301)
• Number of Slots: 4

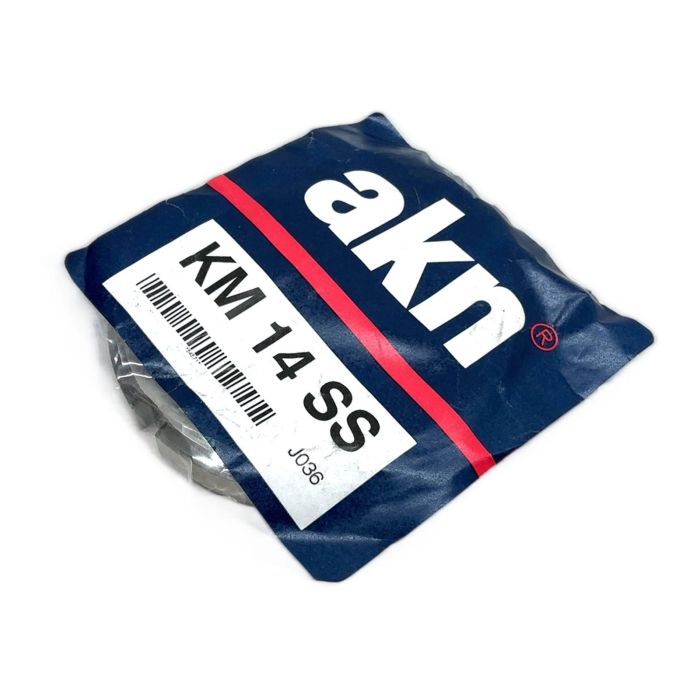

Label Info

• Brand: AKN
• Model: KM 14 SS
• Article No: 03431831
• Markings on part: KM 14 V2A, akn-HSP, R14, 48959

Application

These lock nuts are widely used in various industries, including agriculture, automotive, and general machinery manufacturing. They are essential for securing bearings on adapter sleeves, withdrawal sleeves, or directly onto shafts in gearboxes, pumps, and conveyor systems, especially where moisture or corrosive agents are present.

Country of Origin

Netherlands

CO2 Impact

By purchasing this pre-owned part, you are contributing to a more sustainable circular economy and helping to reduce industrial waste. Opting for this AKN lock nut saves approximately 0.6 kg of CO2 compared to manufacturing a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

V2A is a grade of stainless steel (equivalent to AISI 304) that offers excellent corrosion resistance. This is crucial for applications in humid, wet, or chemical environments where a standard steel nut would rust and potentially fail.

The KM 14 lock nut is designed to be used with an MB 14 lock washer. The inner tab of the washer fits into a keyway on the shaft, and one of the outer tabs is bent into one of the four slots on the nut's circumference to prevent it from loosening due to vibration or rotation.

The KM 14 lock nut has a standard metric fine thread of M70x2, which means it has a nominal diameter of 70 mm and a thread pitch of 2 mm.
