akn H 310/40 D Adapter Sleeve Assembly

Description

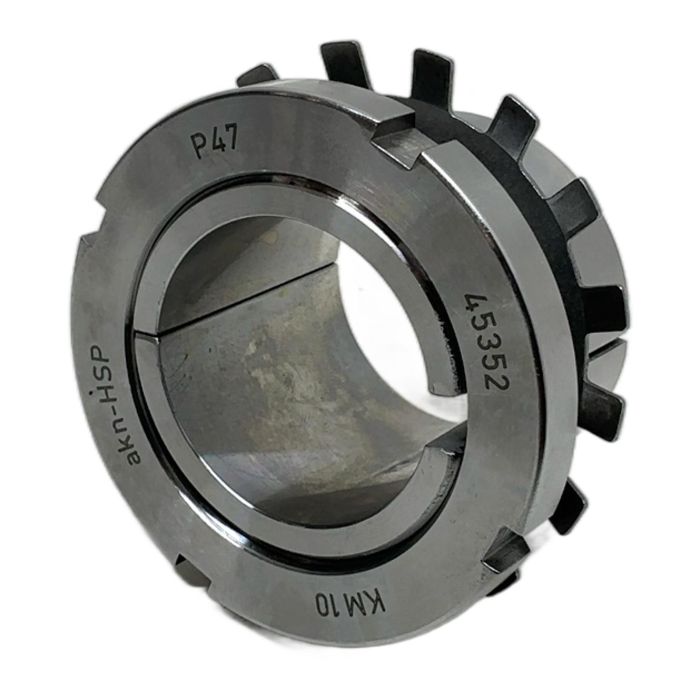

The akn H 310/40 D is a high-quality adapter sleeve assembly designed for mounting bearings with a tapered bore onto 40 mm cylindrical shafts. This complete set, including the sleeve, lock nut, and lock washer, ensures a secure fit and simplifies the installation and dismounting process. It is an essential component for reliable power transmission in a wide range of machinery.

Specifications

• Manufacturer: akn
• Part Number: H 310/40 D
• Product Type: Adapter Sleeve Assembly
• Shaft Diameter (Bore): 40 mm
• Included Lock Nut: KM 10
• Included Lock Washer: MB 10 (corresponding to KM 10)
• Material: High-grade steel

Label Info

• Marking on Nut: KM 10
• Marking on Sleeve: akn-HSP

Application

Used extensively in industrial equipment such as conveyor systems, agricultural machinery, fans, and pumps to securely locate bearings on shafts, allowing for thermal expansion and ensuring operational stability.

Country of Origin

This product is manufactured by akn in Turkey.

CO2 Impact

Choosing this reused adapter sleeve assembly prevents the emission of approximately 1.2 kg of CO2 compared to manufacturing a new one. This saving is equivalent to charging 144 smartphones.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

A standard H 309 sleeve is designed for a 40mm shaft. This akn H 310/40 D uses the larger outer dimensions and thread of an H 310 series sleeve (which is standard for a 45mm shaft) but is manufactured with a 40mm bore. This makes it a special variant, potentially for applications requiring a more robust sleeve body or a specific housing fit.

The KM 10 lock nut should be tightened to remove the internal clearance of the bearing until a firm seating is achieved. Use a hook or impact spanner. Once properly tightened, one of the tabs on the MB 10 lock washer should be bent into a corresponding slot on the circumference of the lock nut to prevent it from loosening during operation.

Yes, the 'HSP' marking on the sleeve likely stands for High Speed Precision. The precise manufacturing tolerances of this sleeve assembly make it suitable for applications with higher rotational speeds, ensuring minimal vibration and run-out.
