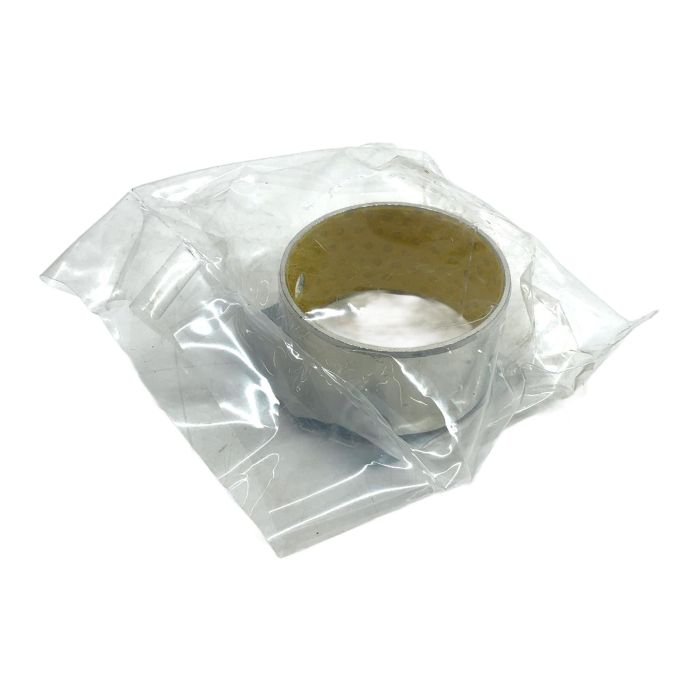

AKN GLI POM 505530 Plain Bearing

Description

The AKN GLI POM 505530 is a high-quality, maintenance-free wrapped plain bearing designed for a wide range of industrial applications. Its composite structure consists of a steel backing for high load capacity, a sintered bronze layer for heat dissipation, and a POM sliding surface with lubricant pockets for excellent friction and wear characteristics. This bearing is suitable for both rotating and oscillating movements.

Specifications

• Manufacturer: AKN
• Part Number: GLI POM 505530
• Type: Plain Bearing / Sleeve Bushing
• Inner Diameter (d): 50 mm
• Outer Diameter (D): 55 mm
• Length (L): 30 mm
• Material: Steel / Sintered Bronze / POM (Polyoxymethylene)

Label Info

• Brand: akn
• Model: GLI POM 505530
• Batch Code: H095

Application

This type of bearing is commonly used in hydraulic cylinders, construction machinery, agricultural equipment, and general mechanical engineering where high loads and low speeds are present.

Country of Origin

Germany

CO2 Impact

Choosing this new surplus bearing over a new production run saves approximately 0.2 kg of CO2, which is equivalent to driving a car for 1 kilometer.

Availability

In stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question? What is the main advantage of the POM sliding layer in this bearing?

Answer: The Polyoxymethylene (POM) layer provides a low-friction, self-lubricating surface that is highly resistant to wear and chemicals. The indented pockets on the surface act as reservoirs for grease, ensuring long-term lubrication and reducing maintenance needs.

Question? Is this bearing suitable for dry-running applications?

Answer: While the bearing can operate dry for short periods under light loads and low speeds, it is designed for lubricated applications. Initial greasing upon assembly is recommended to achieve optimal performance and maximum service life.

Question? What are the operational temperature limits for the AKN GLI POM 505530?

Answer: Bearings with a POM sliding surface typically operate effectively in a temperature range from -40 deg C to +110 deg C (continuous), with short-term peaks up to +130 deg C.
