akn GEH 140 ES-2RS Spherical Plain Bearing

Description

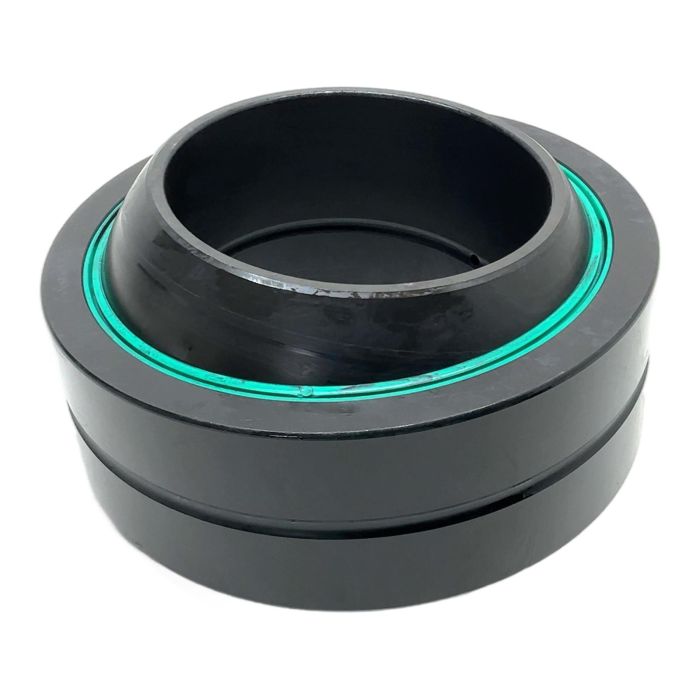

This is a new-in-box (surplus) akn GEH 140 ES-2RS radial spherical plain bearing. It is a high-capacity, maintenance-free bearing designed for demanding applications. The steel-on-steel construction ensures excellent performance under heavy radial and combined loads, while the integrated 2RS seals provide superior protection against contaminants, extending the bearing's service life.

Specifications

• Inner Diameter (d): 140 mm
• Outer Diameter (D): 210 mm
• Width (Inner Ring): 90 mm
• Width (Outer Ring): 70 mm
• Seals: 2RS - Contact seals on both sides
• Sliding Contact Surface: Steel/Steel

Label Info

• Manufacturer: akn
• Type Number: GEH 140 ES-2RS
• Batch Code: L568

Application

This bearing is ideal for use in heavy-duty industrial machinery such as construction equipment, mining vehicles, agricultural machinery, and other applications where robust, reliable joints that accommodate misalignment are required.

Country of Origin

The product comes from Germany.

CO2 Impact

By choosing this surplus product over a new one, you are saving approximately 21.8 kg of CO2. This is equivalent to the emissions from driving a standard car for 109 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What does the "ES-2RS" suffix signify for the akn GEH 140 ES-2RS?

The "ES" indicates that the bearing has a steel-on-steel sliding contact surface and the outer ring is split once. The "2RS" denotes that the bearing is equipped with contact seals on both sides to protect against contaminants and retain lubricant, making it a maintenance-free unit under normal operating conditions.

While the GEH ... ES-2RS series is designed for maintenance-free operation, this specific model is pre-lubricated for its service life. Attempting to relubricate it is not standard practice and could damage the seals, as it lacks specific lubrication grooves or holes.

The akn GEH 140 ES-2RS is a high-performance bearing. According to standard specifications for this size, it typically has a dynamic load rating (C) of around 2450 kN and a static load rating (C0) of approximately 4900 kN. Always consult the manufacturer's datasheet for the most accurate and up-to-date values for your specific application.
