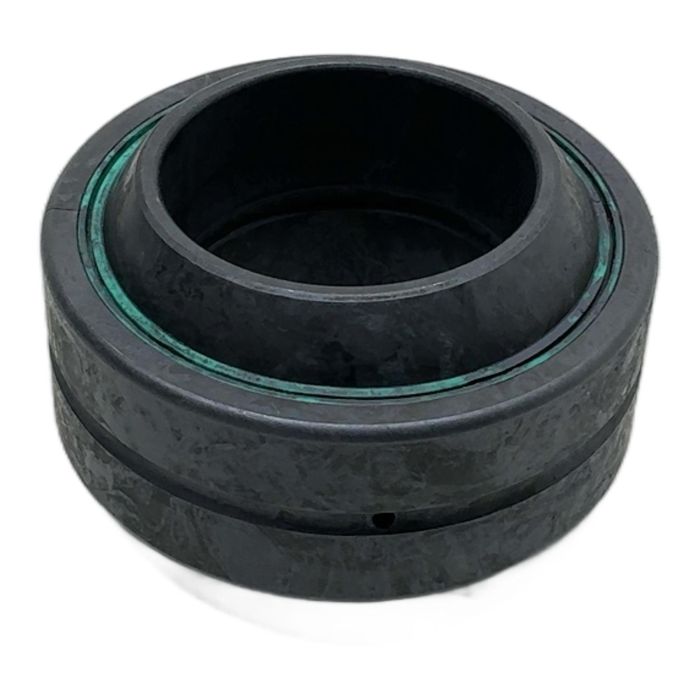

INA GEG45ES-2RS Radial Spherical Plain Bearing

Description

The INA GEG45ES-2RS is a robust, maintenance-free radial spherical plain bearing designed to handle heavy loads and accommodate misalignment. Its steel-on-steel construction is suitable for demanding industrial applications. The bearing is equipped with contact seals on both sides to prevent the ingress of dirt and moisture while retaining the factory lubrication for its entire service life.

Specifications

• Manufacturer: INA (Schaeffler Group)
• Part Number: GEG45ES-2RS
• Type: Radial Spherical Plain Bearing
• Bore Diameter (d): 45 mm
• Outer Diameter (D): 85 mm
• Inner Ring Width (B): 40 mm
• Outer Ring Width (C): 32 mm
• Seals: 2RS - Contact seals on both sides
• Sliding Contact Surface: Steel / Steel

Label Info

• Model: GEG45ES-2RS

Application

This type of bearing is commonly used in construction machinery, agricultural equipment, hydraulic cylinders, and other applications where pivoting, oscillating movements under heavy loads are present.

Country of Origin

Manufactured by INA, part of the Schaeffler Group, typically in Germany.

CO2 Impact

By purchasing this surplus item, you help avoid the 2.6 kg of CO2 emissions associated with the production of a new one, contributing to a more sustainable industrial sector.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The '2RS' designation indicates that the bearing is fitted with contact seals made of nitrile rubber (NBR) on both sides. These seals provide excellent protection against contamination and prevent lubricant leakage.

No, spherical plain bearings like this are designed for slow, oscillating, and tilting movements at low sliding velocities. They are not intended for continuous high-speed rotation.

The GEG45ES-2RS is a maintenance-free bearing. It is lubricated for life at the factory and sealed, eliminating the need for relubrication under normal operating conditions.
