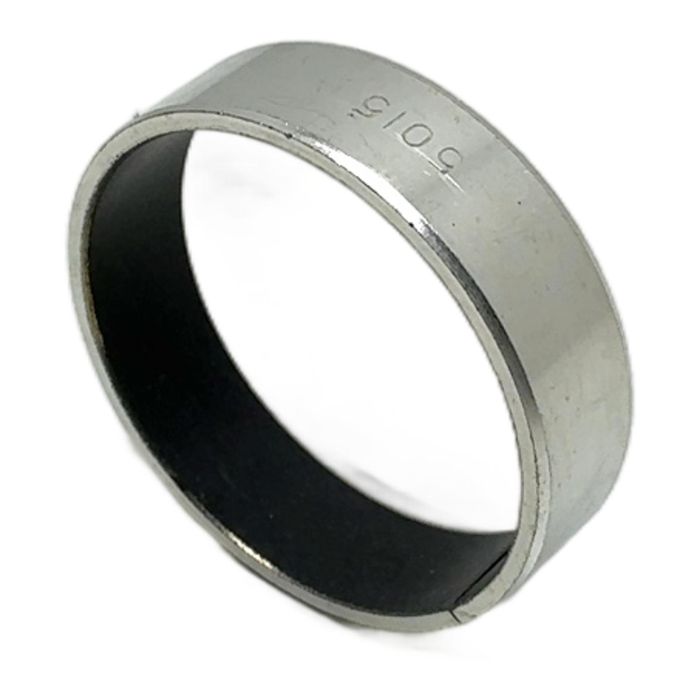

AKN BM 505515 Bimetal Plain Bearing Bush

Description

The AKN BM 505515 is a high-performance, maintenance-free bimetal plain bearing bush. It is constructed with a steel backing for high load capacity and a sintered bronze layer impregnated with a PTFE-based sliding material. This design ensures low friction, excellent wear resistance, and reliable operation in demanding industrial environments, particularly for slow rotational and oscillating movements.

Specifications

• Inner Diameter (d): 50 mm
• Outer Diameter (D): 55 mm
• Length (L): 15 mm
• Material: Bimetal (Steel back, Sintered Bronze, PTFE sliding layer)
• Operational Temperature Range: -200 to +280 deg C

Label Info

• Manufacturer: AKN
• Model: BM 505515
• Article Number: 03435334

Application

This type of bearing bush is widely used in applications such as hydraulic cylinder pivots, construction and agricultural machinery, automotive suspension systems, and general mechanical engineering where high loads and intermittent motion are common.

CO2 Impact

By choosing this new surplus bearing, you are contributing to a circular economy. Reusing this part avoids the production of a new one, saving approximately 0.1 kg of CO2. This is equivalent to the energy needed to charge a smartphone 12 times.

Availability

This is a new surplus item. It is in excellent condition but may not come in the original factory box. Order now from PLC2Day for expert support and fast delivery.

FAQ

What are the main advantages of a bimetal bearing like the BM 505515?

Bimetal bearings offer a great combination of high load-bearing capacity due to their steel backing and excellent self-lubricating, low-friction properties from the PTFE sliding layer. This makes them ideal for maintenance-free applications.

Is this bearing suitable for high-speed rotational applications?

No, this type of bearing is optimized for high-load, low-speed, or oscillating movements. For continuous high-speed rotation, a ball or roller bearing would be more appropriate.

What kind of shaft tolerance is recommended for a 50mm inner diameter bush?

For optimal performance and press-fit, it is generally recommended to use a shaft with an h-tolerance (e.g., h8 or h9). However, always consult the specific application and manufacturer's guidelines for precise recommendations.
