AKN Bimetal Plain Bearing Bush 38x42x40mm

Description

This is a bimetal plain bearing bush, model BM 384240, from the reputable manufacturer AKN. It is engineered for high load capacity and reliable performance in demanding industrial environments. The composite material ensures low friction and excellent wear resistance when properly lubricated.

Specifications

• Manufacturer: AKN
• Model: BM 384240
• Type: Bimetal Plain Bearing Bush
• Inner Diameter (ID): 38 mm
• Outer Diameter (OD): 42 mm
• Length (L): 40 mm
• Material: Steel / Bronze composite
• Standard Compliance: DIN 1494 / ISO 3547

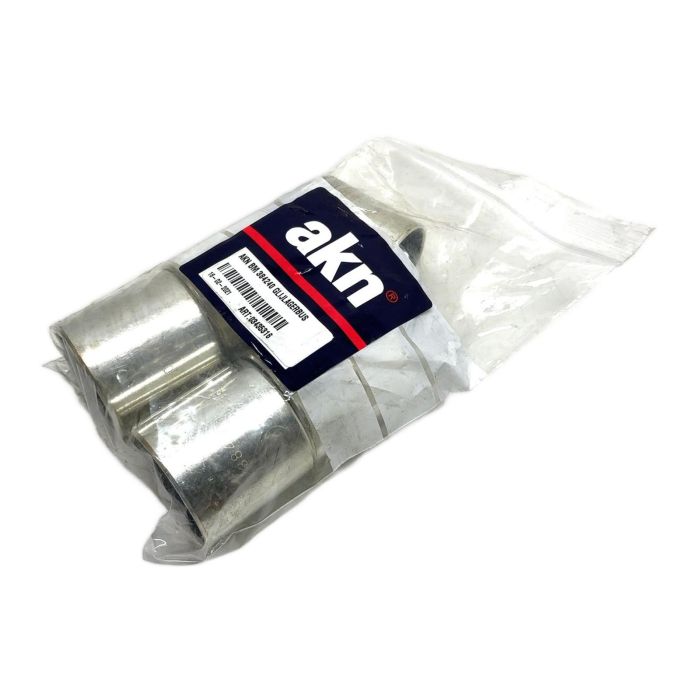

Label Info

• Part Number: AKN BM 384240 GLIJLAGERBUS
• Article Number: 03435316
• Date: 16-02-2021

Application

Suitable for a wide range of applications including automotive suspension systems, hydraulic cylinders, agricultural machinery, and general mechanical engineering where high loads and oscillating movements are common.

Country of Origin

Manufactured in Germany.

CO2 Impact

Choosing this surplus product helps to avoid the CO2 emissions associated with new manufacturing. By reusing this component, you are contributing to a more sustainable industrial supply chain.

Availability

This item is in stock and ready for immediate dispatch. It is a new-old-stock (NOS) item in its original, sealed packaging. Order now from PLC2Day for expert support and fast delivery.

FAQ

Bimetal bearings combine the strength of a steel backing with the excellent anti-friction properties of a bronze or other alloy sliding layer. This results in high load-bearing capacity, good fatigue resistance, and effective heat dissipation, making them superior to monolithic polymer or bronze bearings in many heavy-duty applications.

This bearing should be press-fitted into a rigid housing with an H7 tolerance. It is crucial to use a suitable mandrel that applies force only to the outer ring of the bush to prevent damage. The housing bore should be clean and free of burrs before installation.

The sliding surface of this type of bimetal bearing typically has indents or pockets to retain lubricant. While it may have a light protective coating, it is designed for operation with external lubrication (oil or grease) to achieve its maximum performance and lifespan. The lubrication regime depends on the specific application's speed, load, and operating environment.
