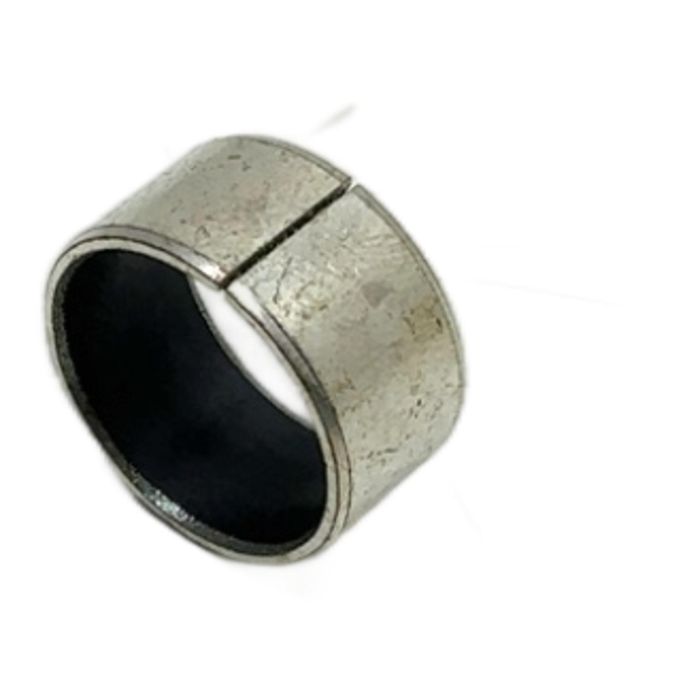

AKN BM 202312 Plain Bearing Bush

Description

The AKN BM 202312 is a high-performance, maintenance-free plain bearing bush designed for a wide range of industrial applications. Its composite structure, featuring a steel back, sintered bronze layer, and a PTFE sliding surface, provides excellent low-friction characteristics and high load-bearing capacity. This wrapped bushing is suitable for both rotating and oscillating movements and performs reliably without the need for lubrication.

Specifications

• Manufacturer: AKN
• Type: BM 202312
• Inner Diameter: 20 mm
• Outer Diameter: 23 mm
• Length: 12 mm
• Material: Composite (Steel, Sintered Bronze, PTFE)
• Standard: Conforms to DIN 1494 / ISO 3547

Label Info

• Part Number: 03435250
• Model: AKN BM 202312
• Description: GLIJLAGERBUS

Application

Ideal for use in hydraulic cylinders, automotive components, construction machinery, and general mechanical engineering where maintenance-free operation and high durability are required.

CO2 Impact

Choosing this reused component prevents the emission of approximately 0.02 kg of CO2 compared to manufacturing a new one. This supports sustainable industrial operations by reducing waste and energy consumption.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The main advantages include self-lubricating properties (maintenance-free), high load capacity, low coefficient of friction, excellent wear resistance, and a compact, lightweight design.

This depends on the application, but generally, these bearings support a high static load (up to 250 N/mm2) and dynamic loads (up to 140 N/mm2) at low speeds (typically below 2 m/s). Always consult the manufacturer's datasheet for specific application limits.

No, the PTFE sliding layer provides self-lubricating properties, making this bearing maintenance-free for its entire operational life under normal conditions.
