AKN Flanged Plain Bearing Bushing 6x10x6mm

Description

This is a pack of AKN flanged plain bearings, model BBF 061006. Manufactured from oil-impregnated sintered bronze, these bushings are self-lubricating and designed for maintenance-free operation. They provide excellent wear resistance and low friction characteristics, making them suitable for a wide range of industrial applications involving rotational, oscillating, or linear movements.

Specifications

• Inner Diameter (d): 6 mm
• Outer Diameter (D): 10 mm
• Length (L): 6 mm
• Flange Outer Diameter: 12 mm
• Flange Thickness: 1 mm
• Material: Sintered Bronze (self-lubricating)
• Format: Flanged Bushing (Type BBF)

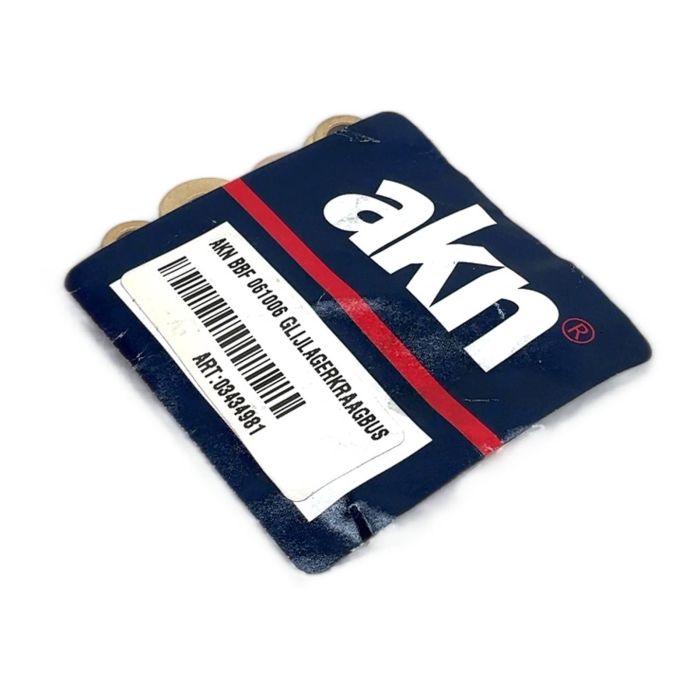

Label Info

• Brand: AKN
• Model: BBF 061006
• Description: GLIJLAGERKRAAGBUS
• Article Number: 03434981

Application

Ideal for use in general machinery, automotive components, household appliances, and other equipment where space is limited and maintenance access is difficult. They excel in applications with low to medium speeds and loads.

CO2 Impact

By choosing this reused component, you are avoiding the production of a new one, saving approximately 0.04 kg of CO2. This is a sustainable choice that contributes to a circular economy and reduces industrial waste.

Availability

This item is in stock and ready for immediate dispatch. All our products are tested and guaranteed to be fully functional. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the primary advantage of sintered bronze material for these bushings?

Sintered bronze is porous, allowing it to be impregnated with lubricant (typically oil). This creates a self-lubricating bearing that releases a thin film of oil during operation, significantly reducing friction and wear without the need for external grease or oil supplies.

What are the correct installation procedures for these press-fit bushings?

These bushings should be pressed into a rigid housing with a specific bore tolerance (typically H7). Use a fitting mandrel that applies force to the outer ring only to avoid damaging the bushing. Ensure the housing bore is clean and free of burrs before installation.

Are these bushings suitable for high-speed or high-load applications?

Sintered bronze bushings are generally best for low-to-medium speed and load applications. For high-speed or heavy-load scenarios, a different type of bearing, such as a roller or ball bearing, or a high-performance polymer bushing, might be more appropriate.
