AKN Flanged Deep Groove Ball Bearing 10x19x7mm

Description

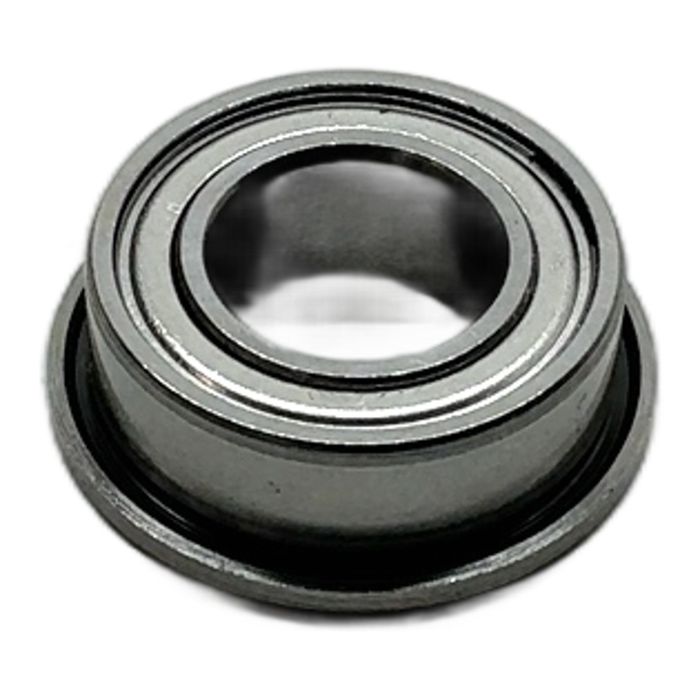

This is a flanged deep groove ball bearing, model 63800-2Z/F OEM10, from the brand AKN. It is a single-row bearing designed to accommodate radial and moderate axial loads in both directions. The flange on the outer ring facilitates mounting and precise axial positioning within a housing. The 2Z designation indicates that it is equipped with metal shields on both sides to prevent the ingress of dirt and retain lubricant.

Specifications

• Manufacturer: AKN
• Type: 63800-2Z/F OEM10
• Inner Diameter (Bore): 10 mm
• Outer Diameter: 19 mm
• Width: 7 mm
• Flange Outer Diameter: approx. 22 mm
• Seals/Shields: 2Z (Metal shields on both sides)
• Material: Steel

Label Info

• Brand: akn
• Part Number: 63800-2Z/F OEM10
• Quantity: 10 PCS (in original box)
• Distributor: BRAMMER

Application

These bearings are commonly used in small motors, robotics, power tools, printers, and other applications where space is limited and easy, accurate mounting is required.

CO2 Impact

By purchasing this reused component, you are contributing to a circular economy and have helped avoid the emission of 0.02 kg of CO2, which is associated with the production of a new part.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This bearing has a 10mm inner diameter (bore), a 19mm outer diameter, and a width of 7mm. The flange has an outer diameter of approximately 22mm.

The '2Z' (or ZZ) designation indicates that the bearing is fitted with two metal shields on both sides to protect against dust and contaminants. The '/F' indicates that the bearing features an integral flange on the outer ring for easier axial location in a housing.

The metal shields (2Z) create a non-contact seal, which results in very low friction and allows for high-speed operation compared to bearings with contact seals (e.g., 2RS). However, the limiting speed will also depend on the lubrication, load, and mounting precision. Always consult a datasheet for specific speed ratings.
