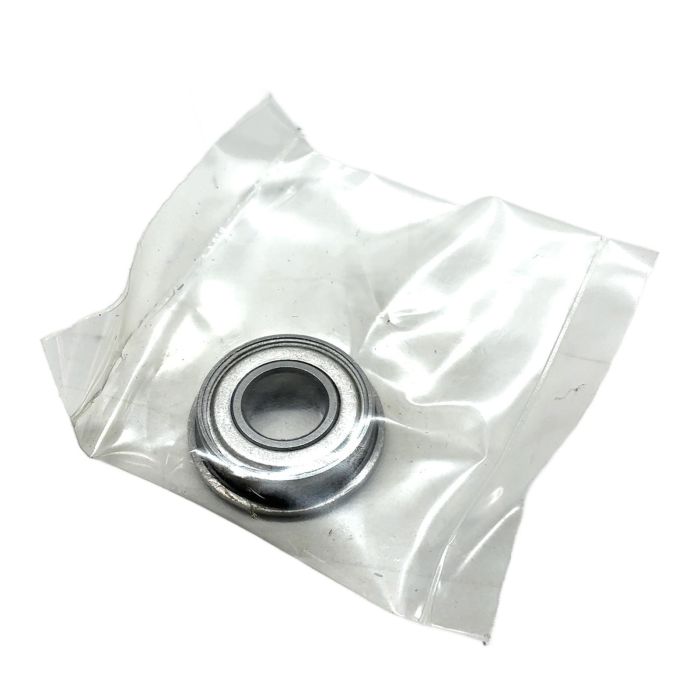

AKN 61900-2Z/F Flanged Deep Groove Ball Bearing

Description

The AKN 61900-2Z/F is a single-row, flanged deep groove ball bearing designed for reliability and precision. It supports both radial and axial loads in both directions and is suitable for a wide range of industrial applications. The flange on the outer ring simplifies mounting by allowing the bearing to be located axially in the housing. This unit comes with two metal shields to prevent the ingress of dirt and retain lubricant.

Specifications

• Manufacturer: AKN
• Type: 61900-2Z/F
• Category: Flanged Deep Groove Ball Bearing
• Bore Diameter: 10 mm
• Outer Diameter: 22 mm
• Width: 6 mm
• Seals: 2Z - Metal shields on both sides
• Flange: Yes

Label Info

• Brand: akn
• Part Number: 61900-2Z/F
• Internal Code: A568

Application

This type of bearing is commonly used in applications where precise axial location is critical, such as in small motors, gearboxes, robotics, and automation equipment. The flange helps to simplify the housing design and reduce assembly time.

CO2 Impact

By choosing this new old stock bearing, you avoid the production of a new one, saving approximately 0.02 kg of CO2. This is a sustainable choice for your maintenance and repair needs.

Availability

This item is in stock and ready for immediate dispatch. It is a new-in-box (NIB) product, sealed in its original inner packaging. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What does the '2Z' suffix signify in the 61900-2Z/F model?

The '2Z' indicates that the bearing is equipped with non-contacting metal shields on both sides. These shields protect the bearing's interior from larger contaminants without increasing rotational friction, making them suitable for moderate to high-speed operation.

Yes, deep groove ball bearings with '2Z' shields are generally well-suited for high-speed applications. The non-contact nature of the shields generates less heat and friction than contact seals (like 2RS). However, the maximum speed also depends on the lubricant type, load, and alignment.

The flange on the outer ring serves as a shoulder, allowing for easy and precise axial positioning within a housing. This simplifies the design of the housing bore, as it can be a straight-through hole, and secures the bearing against axial movement, which is beneficial under thrust loads.
