akn Flanged Deep Groove Ball Bearing 619/8-2Z/F/SS

Description

This is a high-quality, single-row flanged deep groove ball bearing, model 619/8-2Z/F/SS, from akn. Manufactured from stainless steel for excellent corrosion resistance, it is ideal for demanding environments. The built-in flange on the outer ring simplifies axial location in the housing, while the dual metal shields (2Z) provide protection against contaminants and help retain lubricant. This bearing is designed for reliability and long service life in various applications.

Specifications

• Manufacturer: akn
• Type: Flanged Deep Groove Ball Bearing
• Model: 619/8-2Z/F/SS
• Bore Diameter: 8 mm
• Outer Diameter: 19 mm
• Width: 6 mm
• Flange Diameter: 21 mm
• Material: Stainless Steel (SS)
• Sealing: 2Z (Metal shields on both sides)
• Condition: New in original box

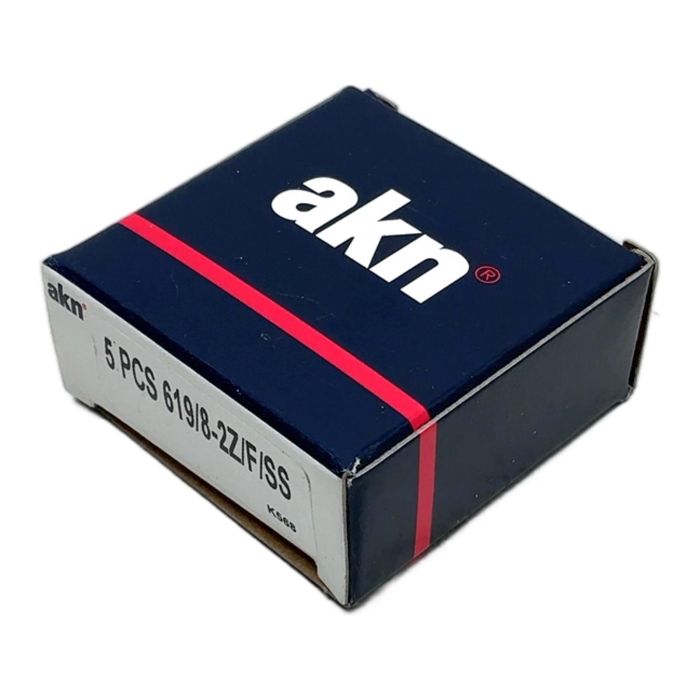

Label Info

• Brand: akn
• Part Number: 619/8-2Z/F/SS
• Quantity: Box of 5 PCS (Price is for one piece)
• Lot Code: K568

Application

Suitable for use in food processing machinery, medical equipment, robotics, and other applications where corrosion resistance and precise mounting are critical.

CO2 Impact

By choosing this surplus item, you contribute to a circular economy and avoid the CO2 emissions of new production, estimated at 0.02 kg. This saving is equivalent to charging a smartphone over two times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'F' indicates a flanged outer ring, which aids in axial location and simplifies assembly. The 'SS' stands for Stainless Steel, providing superior corrosion resistance compared to standard chrome steel.

Yes, bearings with a '2Z' suffix are shielded on both sides and are supplied pre-filled with a high-quality grease suitable for a wide range of operating conditions. They are considered lubricated for life and do not require maintenance.

A flanged bearing can be more easily and accurately located in a housing. The flange acts as a shoulder to position against, preventing axial movement and eliminating the need for a separate shoulder or snap ring in the housing bore, which can simplify the design and reduce machining costs.
