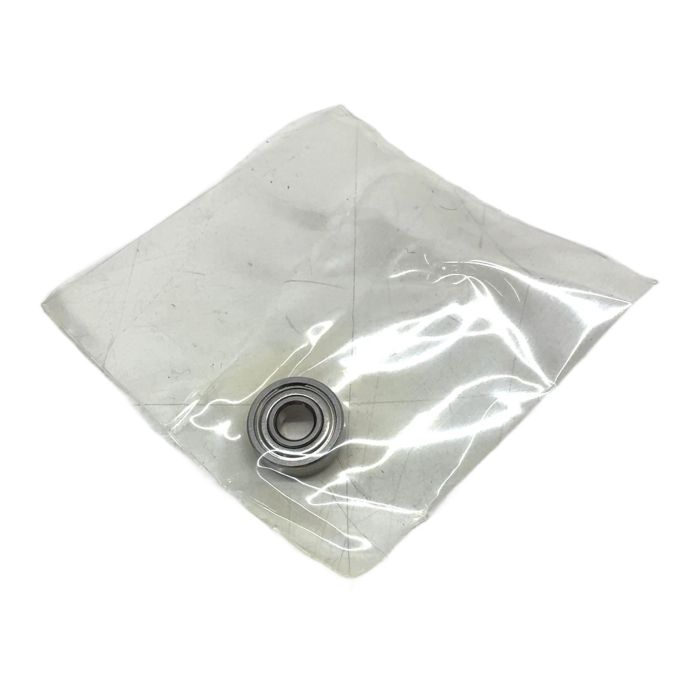

AKN 619/5-2Z/SS Miniature Deep Groove Ball Bearing

Description

The AKN 619/5-2Z/SS is a high-precision, single-row deep groove ball bearing designed for reliability and performance in compact applications. Constructed from stainless steel, it offers superior resistance to corrosion and moisture. The '2Z' designation indicates that it is fitted with non-contact metal shields on both sides, effectively protecting the bearing from dust and debris while maintaining low friction for high-speed operation. This miniature bearing is ideal for use in instrumentation, small electric motors, and medical equipment.

Specifications

• Manufacturer: AKN
• Type: 619/5-2Z/SS
• Inner Diameter (Bore): 5 mm
• Outer Diameter: 13 mm
• Width: 4 mm
• Material: Stainless Steel (SS)
• Sealing: Double Metal Shield (2Z/ZZ)

Application

This bearing is suitable for a wide range of applications that demand high rotational speeds, low torque, and long service life in a small footprint. Examples include robotics, office automation equipment, and precision measuring instruments.

CO2 Impact

Opting for this component helps reduce industrial waste and saves approximately 0.004 kg of CO2 compared to manufacturing a new one. Your choice supports a more sustainable supply chain.

Availability

This item is in stock and ready for immediate dispatch. It is a new-old-stock (NOS) item in its original, sealed packaging. Order now from PLC2Day for expert support and fast delivery.

FAQ

The '2Z' (or 'ZZ') indicates that the bearing is equipped with non-contact metal shields on both sides, which protect the interior from larger dust particles without increasing friction. The 'SS' suffix signifies that the bearing rings and balls are made from Stainless Steel, providing excellent corrosion resistance.

Yes, the 619/5-2Z/SS, being a deep groove ball bearing with metal shields, is well-suited for high-speed applications. The non-contact nature of the metal shields (2Z) generates less friction and heat compared to contact seals (2RS), allowing for higher rotational speeds.

This bearing typically comes pre-lubricated with a standard grease suitable for a wide range of applications. Since it is a shielded (2Z) bearing, it is designed to be lubricated for life and does not require re-lubrication. Attempting to add grease may damage the shields.
