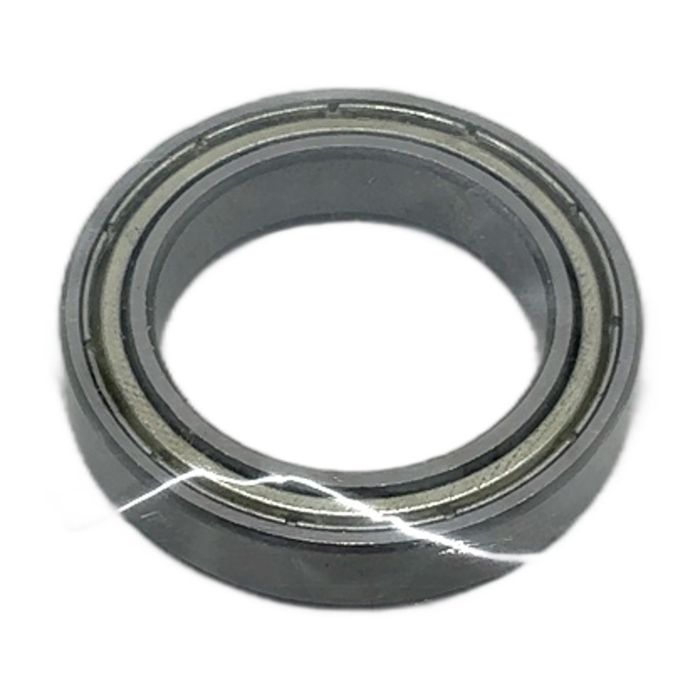

AKN 61805-2Z Deep Groove Ball Bearing

Description

The AKN 61805-2Z is a high-quality single-row deep groove ball bearing designed for reliability and performance in various industrial applications. As part of the extra-thin 61800 series, this bearing is ideal for compact designs where space is limited. The '2Z' suffix indicates that the bearing is equipped with metal shields on both sides, providing effective protection against the ingress of dirt and retaining the pre-filled lubricant for a long, maintenance-free service life.

Specifications

• Inner Diameter (Bore): 25 mm
• Outer Diameter: 37 mm
• Width: 7 mm
• Seal Type: Double-sided metal shields (2Z/ZZ)
• Bearing Series: 61800
• Material: Steel

Label Info

• Brand: AKN
• Type: 61805-2Z
• Distributor: Brammer (Rubix Group)

Application

This bearing is suitable for applications requiring high rotational speeds and the ability to support both radial and moderate axial loads. Common uses include small electric motors, gearboxes, pumps, and other machinery where a compact and reliable bearing solution is essential.

Country of Origin

This product is typically manufactured in China under strict quality control standards set by AKN (Rubix Group).

CO2 Impact

By choosing this refurbished or new-old-stock bearing, you are contributing to a circular economy and helping to reduce industrial waste. The reuse of this component avoids approximately 0.05 kg of CO2 emissions associated with the manufacturing of a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The suffix indicates the type of seal. '2Z' or 'ZZ' means the bearing has non-contact metal shields on both sides, which are good for high speeds but offer basic protection against dust. '2RS' means it has contact rubber seals on both sides, providing better protection against moisture and contaminants but with slightly higher friction and lower maximum speed.

No, this bearing is supplied pre-lubricated with grease for its entire service life. The metal shields (2Z) are designed to retain this grease and prevent the ingress of larger contaminants. Do not attempt to wash out or add more grease.

This part of the bearing designation refers to the dimension series. The '6' indicates it is a single-row deep groove ball bearing. The '18' denotes it belongs to the extra-thin or extra-light series, meaning it has a very small cross-section relative to its bore diameter. This makes it suitable for applications with limited radial space.
