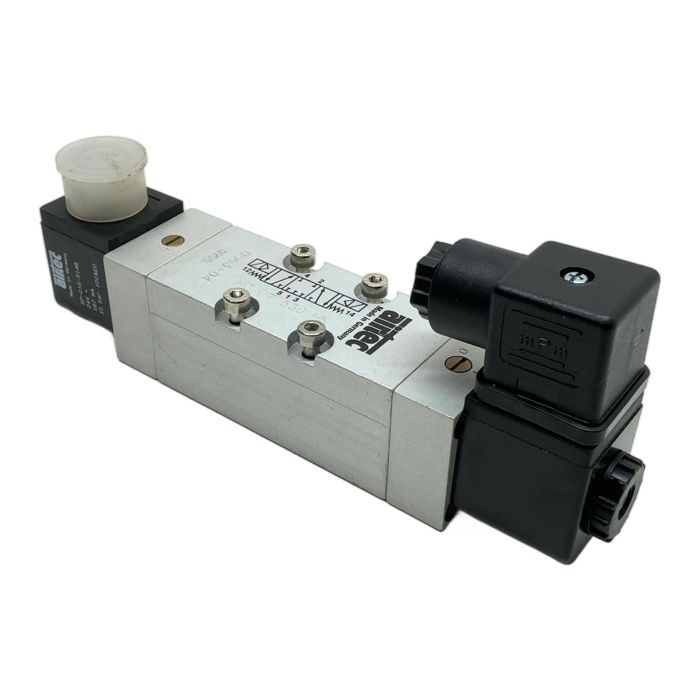

Airtec MC 07 530 HN Double Solenoid Pneumatic Valve

Description

The Airtec MC 07 530 HN is a high-quality 5/3-way pneumatic directional control valve. Featuring a double solenoid design with a closed-center position, it allows for precise stopping and holding of pneumatic cylinders. This valve is built for durability and reliable performance in demanding industrial automation environments. It comes complete with two 24V DC coils and is ready for integration into your system. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: Airtec
• Valve Type: MC 07 530 HN
• Function: 5/3-Way, Closed Center, Solenoid/Solenoid
• Operating Voltage: 24V DC
• Coil Model: SP-016-514B (x2)
• Current: 187 mA
• Duty Cycle: 100% ED (Continuous Duty)
• Maximum Pressure: 10 bar
• Port Connection: G1/4 inch (assumed for series)

Label Info

• Valve Body: MC 07 530 HN
• Coils: SP-016-514B, 24V =, 187mA, 10 bar, 100%ED

Application

This valve is ideally suited for applications requiring precise intermediate positioning of double-acting pneumatic actuators, such as clamping, positioning, and sorting tasks in manufacturing and assembly lines.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this component saves an estimated 9.0 kg of CO2 compared to manufacturing a new one. This choice supports sustainable industrial practices.

Availability

This item is an obsolete component but is available from our stock. While it is no longer in production, it is a reliable solution for replacing existing parts or for systems designed around this specific model. The modern equivalent is the Airtec M-07 series.

FAQ

A 5/3 closed-center valve has three positions. In the neutral (center) position, all ports are blocked. This allows you to stop and hold a double-acting cylinder in any position along its stroke by trapping the air on both sides of the piston.

These coils use a standard DIN 43650 Form B connector. The images show that MPM brand connectors are fitted, but any connector conforming to this standard will be compatible.

Airtec valves of this vintage are generally designed to operate with both lubricated and non-lubricated compressed air, as long as the air is filtered to prevent contamination.
