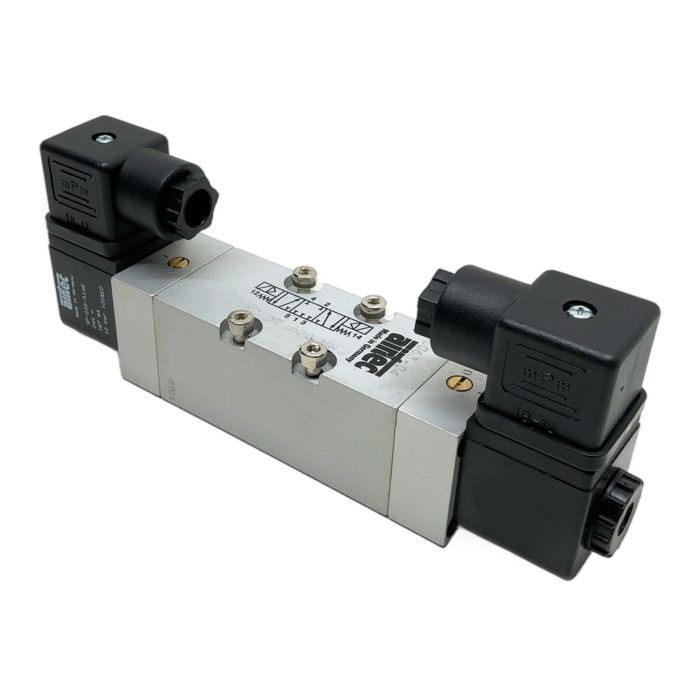

Airtec 5/3-Way Pneumatic Solenoid Valve

Description

This is the Airtec MC 07 530 HN, a high-performance 5/3-way pneumatic solenoid valve. It features a double solenoid design for bistable operation with a spring-return to a closed center position. Engineered in Germany, this valve provides reliable and precise control for pneumatic cylinders and actuators. It operates on a standard 24V DC supply and is rated for a maximum pressure of 10 bar, making it suitable for a wide range of industrial applications.

Specifications

• Manufacturer: Airtec
• Valve Model: MC 07 530 HN
• Coil Model: SP-016-5148
• Type: 5/3-Way, Double Solenoid, Closed Center
• Operating Voltage: 24V DC
• Current Consumption: 187 mA
• Maximum Operating Pressure: 10 bar
• Duty Cycle: 100% ED

Label Info

• Valve Body Markings: MC 07 530 HN, 0063-04
• Coil Markings: SP-016-5148, 24V =, 187 mA, 10 bar 100%ED

Application

Ideal for applications requiring precise intermediate positioning or locking of pneumatic cylinders, such as in material handling, packaging machinery, and automated assembly lines.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned item, you are helping to avoid approximately 8.8 kg of CO2 emissions compared to manufacturing a new one. This saving is comparable to driving 44 km in a standard passenger car.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

A 5/3-way valve has five ports and three positions. The 'closed center' configuration means that in the neutral (middle) position, all ports are blocked. This is useful for stopping a double-acting cylinder at any point in its stroke.

These coils use standard DIN 43650 Form B connectors. The connectors visible in the image, marked 'mpm' and 'B-12', are this type and are included with the valve.

Yes, each solenoid features a manual override button. This allows for manual actuation of the valve for testing, setup, or emergency operation without electrical power.
