AHW Elektronik Power Supply Unit NG 756

Description

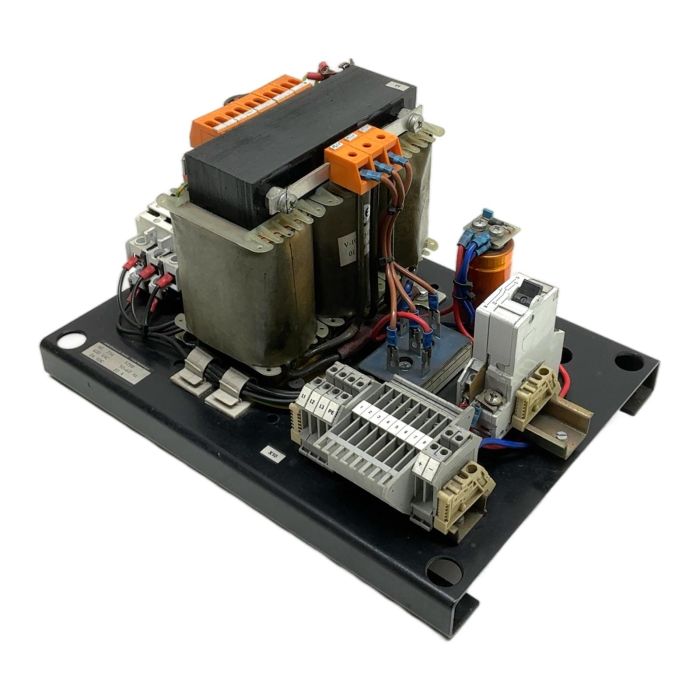

This is a heavy-duty industrial power supply assembly, model NG 756, manufactured by AHW Elektronik GmbH. It is designed to provide a reliable 24 VDC power source from a 400 VAC input. The unit is built on a solid metal chassis and integrates key components, including a large transformer for galvanic isolation and voltage conversion, and a Klockner-Moeller (Eaton) PKZM0-10 motor protection circuit breaker. This makes it a complete and robust power solution for industrial control systems, motors, and other automation equipment. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: AHW Elektronik GmbH
• Model: NG 756
• Input Voltage: 400 VAC
• Frequency: 50-60 Hz
• Output Voltage: 24 VDC
• Output Current: 20 A
• Configuration: Assembled unit on mounting plate

Label Info

• AHW Elektronik GmbH - 71332 Waiblingen
• NG 756
• 1798
• 400 VAC, 50-60 Hz
• 24 VDC, 20 A

Application

Ideal for powering control cabinets, small machinery, solenoid valves, and other 24 VDC components in an industrial environment where a 400V AC source is available.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this reused item, you are contributing to a circular economy and helping to avoid approximately 54 kg of CO2 emissions that would be generated from manufacturing a new one.

Availability

This is an obsolete item, but it is in stock and ready for immediate dispatch. Its durable linear design ensures a long service life.

FAQ

The unit is designed for a 400 VAC input. Given the typical industrial application, it is likely intended for connection between two phases of a three-phase system, but you should always verify the connection scheme based on the machine it was removed from or consult an electrical expert.

As a linear power supply with a large transformer and capacitor, the output is smoothed and filtered DC. However, it may be an unregulated supply, meaning the voltage could vary slightly with input voltage and load. For highly sensitive electronics, you should verify if its voltage stability meets your requirements.

The PKZM0-10 is a motor protection circuit breaker. Its inclusion suggests this power supply was likely used to power a DC motor or a system with inductive loads, providing both overcurrent protection and a manual disconnect function.
