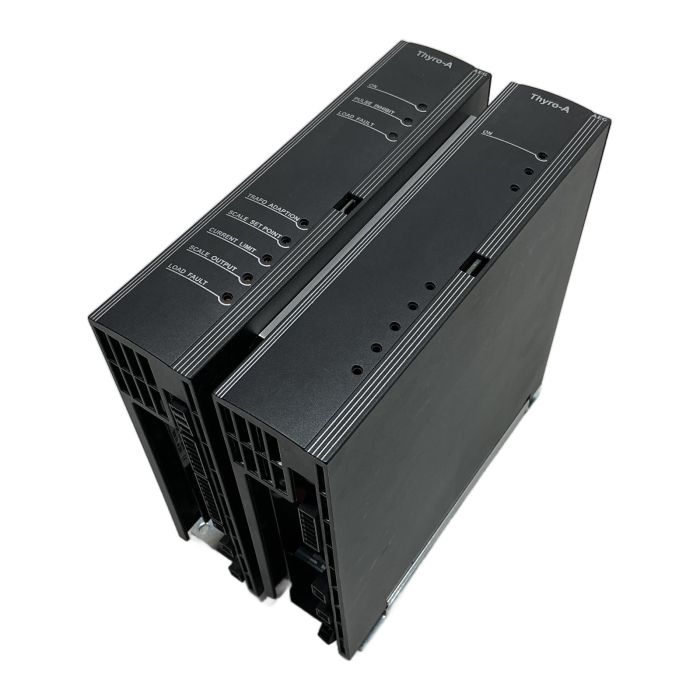

Advanced Energy Thyro-A Power Controller

Description

The Advanced Energy Thyro-A 2A 400-60 H RL1 is a robust and reliable digital SCR power controller designed for industrial power regulation. It provides precise control for heating elements and other loads, ensuring process stability and efficiency. This model features two-phase control, an integrated semiconductor fuse for safety, and a relay output for signaling.

Specifications

• Manufacturer: Advanced Energy
• Series: Thyro-A
• Model: 2A 400-60 H RL1
• Part Number: 20000001074
• Rated Voltage: up to 400 V
• Rated Current: 60 A
• Control Mode: Two-phase control
• Features: Integrated high-speed fuse (H), Relay output (RL), Logic input (1)
• Operating Modes: Phase-angle firing (VAR), Burst-firing (TAKT)

Label Info

• ON LED: Indicates power status
• PULSE INHIBIT LED: Indicates when firing pulses are blocked
• LOAD FAULT LED: Signals an issue with the load or fuse

Application

This power controller is ideal for applications in thermal processing, including industrial ovens, furnaces, plastics processing, and drying systems where precise temperature control is critical.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned unit, you help avoid the emission of approximately 120 kg of CO2, which is equivalent to driving a car for 600 km.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Phase-angle firing (VAR) controls power by adjusting the firing angle of the thyristors within each AC half-cycle, providing very smooth and continuous power regulation. Burst-firing (TAKT) switches full cycles on and off, which reduces electrical noise (RFI) but can cause light flicker. TAKT mode is preferred for purely resistive loads where flicker is not a concern.

To set the current limit, you should first calculate the maximum nominal current of your heating element. Then, adjust the 'CURRENT LIMIT' potentiometer on the front panel to a value slightly above this nominal current to allow for minor fluctuations but prevent overcurrent damage during faults or startup.

Yes, it is suitable for transformer-coupled loads. When using it with transformers, the phase-angle firing (VAR) mode with soft-start is recommended to prevent high inrush currents that could damage the transformer or blow the fuses. The 'TRAFO ADAPTION' setting may need to be adjusted.
