ABB VERITRON GCB6 DC Motor Control Unit

Description

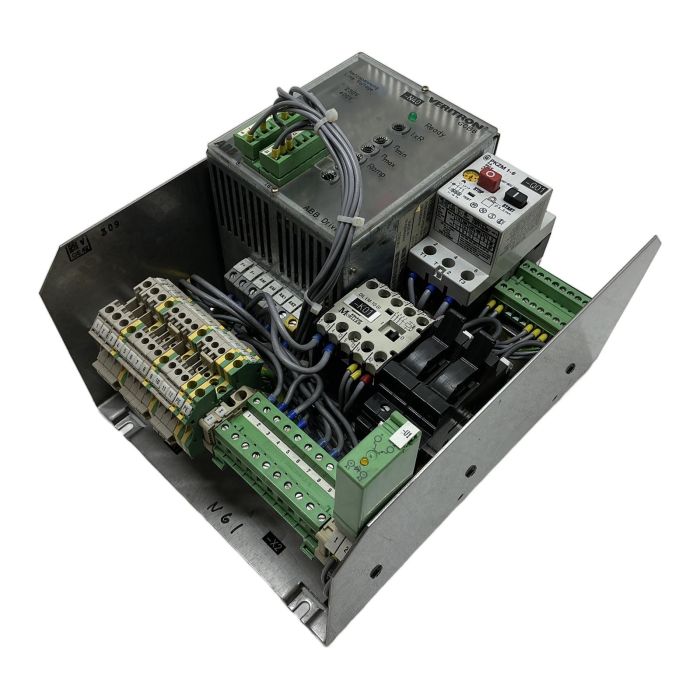

This is a complete, pre-assembled control unit featuring the robust ABB VERITRON GCB6 DC motor controller. Housed in a durable metal chassis, this assembly integrates essential control components, including a Klockner-Moeller motor protector and contactor, making it a ready-to-install solution for various DC motor applications. It offers analog control over motor parameters such as speed, ramp, and current, ideal for replacing obsolete systems or for new, straightforward installations.

Specifications

• Main Drive: ABB VERITRON GCB6
• Input Voltage: Selectable 230V / 400V
• Motor Protector: Klockner-Moeller PKZM 1-6 (Adjustable 4-6A)
• Contactor: Moeller DIL M-10
• Adjustments: IxR, nmin, nmax, Ramp, Imax
• Mounting: Metal chassis with terminal blocks for easy wiring

Label Info

• Manufacturer: ABB Drives
• Primary Model: VERITRON GCB6
• Integrated Components: Klockner-Moeller PKZM 1-6, Moeller DIL M-10, Elesta SGR 282 Relay

Application

Suitable for controlling small-scale permanent magnet or shunt-wound DC motors in applications such as conveyors, mixers, pumps, and other legacy industrial machinery requiring reliable analog speed control.

Country of Origin

Germany

CO2 Impact

By purchasing this refurbished assembly, you are helping to avoid the 88.0 kg of CO2 emissions associated with the production of a new one. This saving is comparable to the emissions from driving a standard car for 440 kilometers.

Availability

This is an obsolete product and is available as a tested, used item. Availability is limited. Order now from PLC2Day for expert support and fast delivery.

FAQ

The GCB6 is an analog, single-phase thyristor drive typically used for controlling permanent magnet or shunt-wound DC motors. It provides a variable DC voltage to control the motor's speed.

The input voltage selection is typically done by changing the connections on the internal transformer or specific terminals as indicated by a wiring diagram. Always consult the technical manual for this specific model before changing the line voltage to prevent damage.

The PKZM 1-6 is a motor protection circuit breaker. It provides thermal overload protection (adjustable from 4A to 6A) and short-circuit protection for the connected motor. It acts as the main switch and safety disconnect for the motor circuit.
