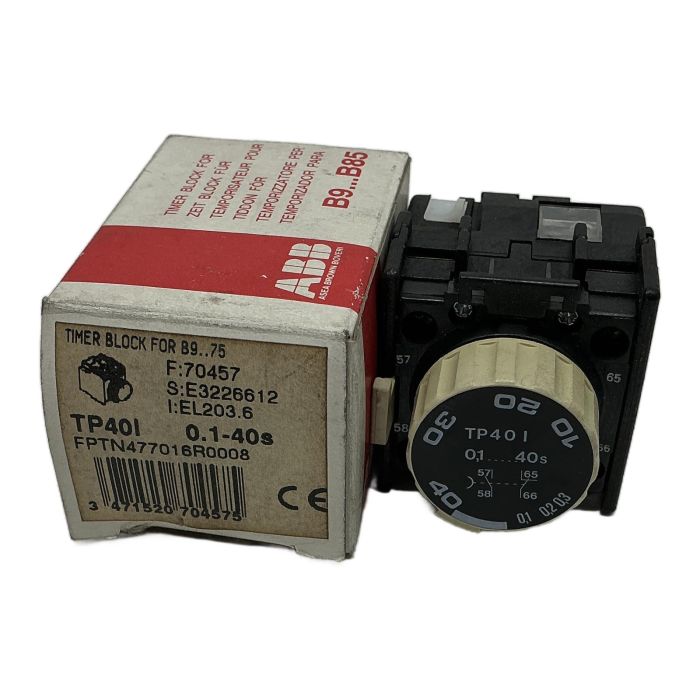

ABB TP40I Pneumatic Timer Block

Description

The ABB TP40I is a pneumatic on-delay timer block designed for use with ABB B-series mini contactors. It provides a simple and reliable method to add timed control to your electrical circuits. With an adjustable time delay from 0.1 to 40 seconds, this unit mounts directly to the front of the contactor, saving panel space and simplifying wiring. Its pneumatic operation means it does not require a separate power supply for the timing function. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: ABB
• Type: TP40I
• Order Code: FPTN477016R0008
• Function: On-Delay Pneumatic Timer
• Time Range: 0.1 - 40 seconds
• Compatibility: ABB B-series mini contactors (e.g., B6, B7)
• Mounting: Front Mount
• Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC)

Label Info

• TP40I
• 0.1-40s
• FPTN477016R0008

Application

This timer block is ideal for applications requiring a delayed start or stop sequence in motor control, lighting control, and other industrial automation processes where B-series contactors are used.

Country of Origin

Made in France.

CO2 Impact

By purchasing this reused component, you are contributing to a circular economy and helping to avoid approximately 2.0 kg of CO2 emissions associated with the production of a new part.

Availability

This item is in stock and ready for immediate dispatch. It is an obsolete component, making it an excellent choice for repairs and maintenance of existing installations.

FAQ

What series of contactors is this TP40I timer compatible with?

The TP40I is specifically designed for front-mounting on the ABB B-series and BC-series mini contactors, such as the B6, B7, BC6, and BC7 models. It is not compatible with the modern AF-series contactors.

No, the TP40I is a pneumatic timer. The timing mechanism is operated mechanically by the energization and de-energization of the contactor's coil it is mounted on. It does not require a separate electrical supply for its timing function.

The time delay is set using the rotary dial on the front of the unit. The dial is marked from 0.1 to 40 seconds, allowing for precise adjustment within this range.
