ABB TP40DA 1SBN020300R1000
In stock
Backorder allowed
Out of stock

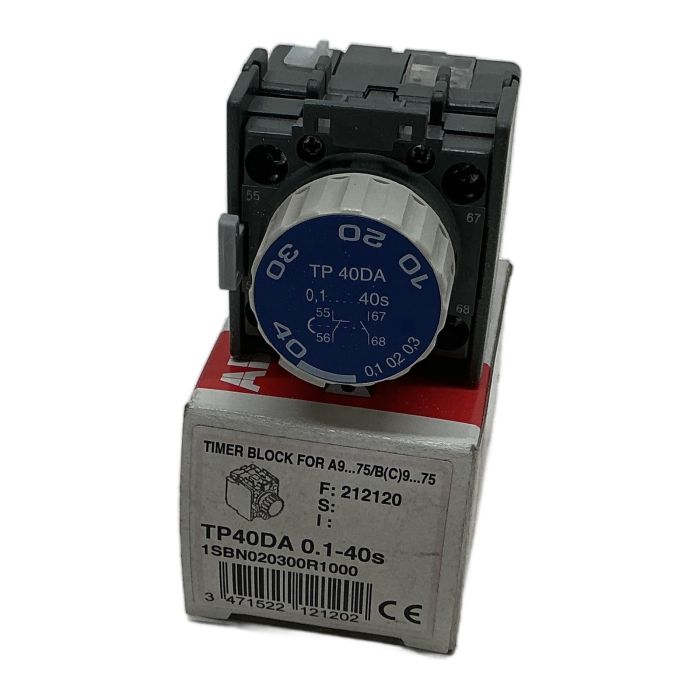

Description / ABB TP40DA 1SBN020300R1000
ABB Pneumatic On-Delay Timer Block
Description
The ABB TP40DA is a pneumatic on-delay timer block designed for front-mounting on A-line contactors from the A9 to A75 series. It provides an adjustable time delay from 0.1 to 40 seconds, making it ideal for various industrial control applications. This timer operates without requiring any coil voltage, ensuring reliable performance and easy integration into existing systems.
Specifications
- Manufacturer: ABB
- Type: TP40DA
- Order Code: 1SBN020300R1000
- Function: Pneumatic On-Delay Timer
- Time Range: 0.1 to 40 seconds
- Contact Configuration: 1 Normally Open (NO) + 1 Normally Closed (NC)
- Mounting: Front-mounted on contactor
Label Info
- Compatibility: FOR A9...75/B(C)9...75
- F: 212120
Application
This timer block is commonly used in motor control circuits, automation panels, and industrial machinery where a time-delayed switching action is required after the main contactor is energized.
Country of Origin
Manufactured by ABB in France.
CO2 Impact
By choosing this pre-owned item, you are helping to avoid the production of a new one, which saves approximately 2.0 kg of CO2. This is equivalent to the emissions from a 10-kilometer car journey.
Availability
This is an obsolete item but available from our stock. Order now from PLC2Day for expert support and fast delivery.
FAQ
What contactor series is the TP40DA compatible with?The TP40DA is specifically designed for use with ABB's A-line contactors, models A9 through A75, as well as B(C)9 through B(C)75 series contactors.
How is the time delay adjusted on this pneumatic timer?The time delay is easily set by rotating the large blue dial on the front of the unit. The scale is marked from 0.1 to 40 seconds for precise adjustment.
What is the contact configuration of the TP40DA?This timer block includes one normally open (NO) and one normally closed (NC) time-delayed contact, providing flexibility for control circuit design.
PLC2DAY is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
Last Update: Friday, March 13, 2026
More Information
| Item Number | TP40DA 1SBN020300R1000 |
|---|---|
| Brands | ABB |
| HS Code | 85364900 |
| EAN | 3471522121202 |
| HS Description | Electrical Timer Relay |
| Manufacturer | ABB |
| Product Condition | Factory New |
| Packing Condition | Original Packing Packing |
