ABB 3-Phase Electric Motor 2.2 kW M3AA 132S 8

Description

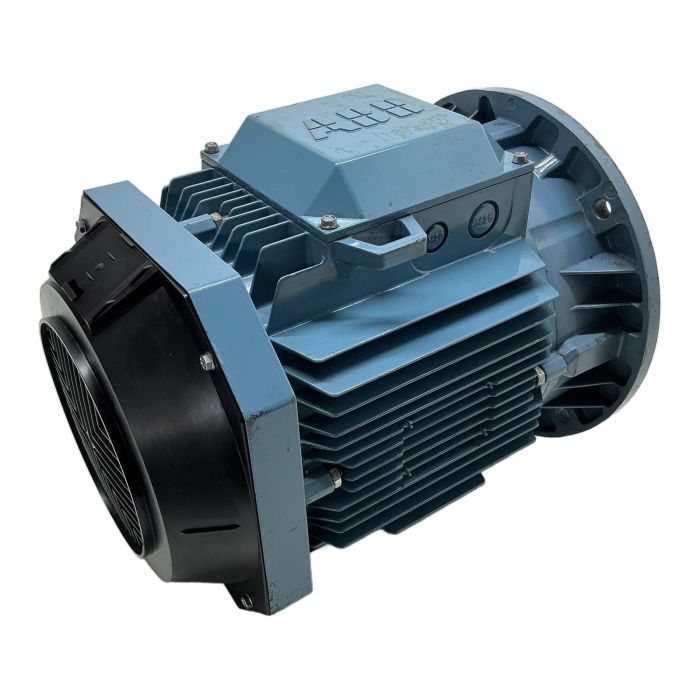

This ABB M3AA 132S 8 is a general-purpose, 3-phase asynchronous motor designed for reliability and efficiency in various industrial applications. With a power rating of 2.2 kW and a low-speed, high-torque 8-pole design, it is well-suited for tasks like driving conveyors, pumps, and fans. The motor features a robust aluminum frame, an IP55 protection rating against dust and water jets, and Class F insulation, ensuring a long service life even in demanding environments. This model is flange-mounted (B5) for secure and direct integration with machinery.

Specifications

• Manufacturer: ABB
• Power Output: 2.2 kW
• Speed (50Hz): 715 r/min
• Speed (60Hz): 870 r/min
• Voltage (50Hz): 230V (Delta) / 400V (Star)
• Voltage (60Hz): 460V (Star)
• Frame Size: 132S
• Number of Poles: 8
• Mounting: B5 Flange
• IP Rating: IP55
• Insulation Class: F
• Efficiency Class: IE2
• Bearings DE/NDE: 6208-2Z/C3 / 6206-2Z/C3

Label Info

• Type: M3AA 132S 8
• Product Code: 3GAA134001-BSL
• Serial Number: 3G1P15260279
• Year of Manufacture: 2015

Application

Ideal for general industrial applications including pumps, fans, conveyors, mixers, and other machinery requiring a reliable low-speed motor.

CO2 Impact

Opting for this pre-owned motor prevents the emission of approximately 96 kg of CO2 compared to manufacturing a new one. This saving is comparable to the emissions from driving a car for 480 kilometers.

Availability

This unit is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The motor uses a 6208-2Z/C3 bearing on the drive end (DE) and a 6206-2Z/C3 bearing on the non-drive end (NDE) as specified on the nameplate.

Yes, the M3AA series with its Class F insulation is generally suitable for use with a Variable Frequency Drive. However, it is recommended to check the drive's specifications for compatibility, especially regarding dv/dt filtering for long cable runs to protect the motor windings.

The '8' indicates the number of magnetic poles in the motor. An 8-pole motor has a nominal synchronous speed of 750 rpm at 50 Hz, resulting in a low-speed, high-torque output compared to more common 2, 4, or 6-pole versions.
