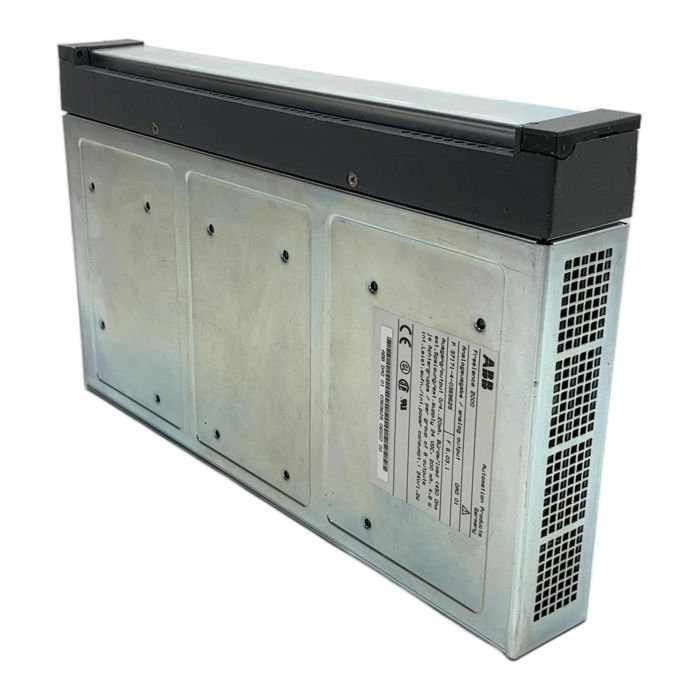

ABB DAO 01 Analog Output Module for Freelance 2000

Description

This is the ABB DAO 01, an analog output module designed for the robust and widely-used Freelance 2000 distributed control system (DCS). It is an essential component for controlling final control elements such as proportional valves, actuators, and indicators by providing precise 0/4 to 20mA current loop signals. This module is ideal for maintaining or expanding existing Freelance 2000 installations, ensuring continued operational reliability without the need for a complete system overhaul. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: ABB
• System: Freelance 2000
• Model: DAO 01
• Part Number: 0369629 / 37171-4-0369629
• Output Type: Analog Current
• Output Signal: 0/4..20mA
• Maximum Load: Less than 450 Ohm
• External Supply Voltage: 24 VDC

Label Info

• Brand: ABB
• Model: DAO 01
• Part Number: P 37171-4-0369629
• Firmware Version (example): FEA V 04.36

Application

The DAO 01 is used in various industrial process control applications, including chemical processing, power generation, and manufacturing plants where the ABB Freelance 2000 system is deployed. It serves to interface the digital controller with analog field devices.

Country of Origin

Germany

CO2 Impact

Choosing this reused ABB DAO 01 module over a new one prevents the emission of approximately 60 kg of CO2. This saving is comparable to the emissions from driving a car for 300 kilometers.

Availability

This is an obsolete item, available as a refurbished spare part. Stock is limited.

FAQ

No, the DAO 01 is specifically designed for the older ABB Freelance 2000 system architecture. For modern systems like System 800xA, you would need a corresponding module from the S800 I/O or a similar series.

The external 24 VDC supply is required to power the output stages of the module, providing the necessary current for the 0/4-20mA loops that control the field devices. The internal power consumption is for the module's own logic.

Yes, compatibility depends on the overall system configuration. The label indicates this unit was used with firmware FEA V 04.36. While it may work with other versions, it is always best to check the Freelance 2000 system documentation to ensure compatibility with your controller's firmware version.
