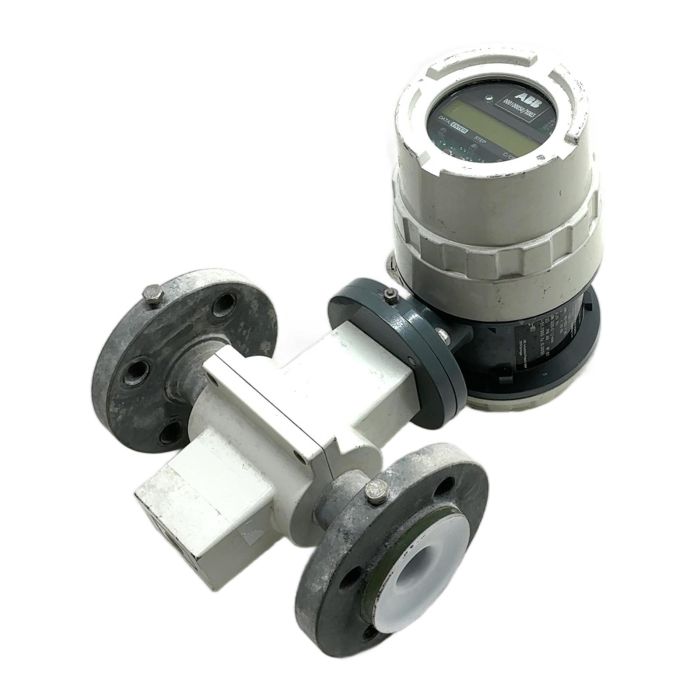

ABB COPA-XE DE43F Electromagnetic Flowmeter

Description

The ABB COPA-XE DE43F is a compact and reliable electromagnetic flowmeter designed for process control applications. It provides accurate measurement for conductive liquids and is built to withstand harsh industrial environments with its IP67 rating. This unit, with a nominal diameter of DN 25 and a pressure rating of PN 40, is ideal for integration into various piping systems.

Specifications

• Manufacturer: ABB
• Model: COPA-XE DE43F
• Order Number: 000100050/X003
• Power Supply: 85-253 V AC
• Nominal Diameter: DN 25
• Pressure Rating: PN 40
• Maximum Flow Rate: 200.0 l/min
• Maximum Temperature: 130 deg C
• Wetted Materials: PTFE / Hastelloy C-4
• Protection Class: IP67

Label Info

• TAG-NO: 55414
• Ver.: 03
• Frequency: 6.25 Hz

Application

This flowmeter is suitable for a wide range of industries including water and wastewater, chemical processing, and food and beverage, where precise flow measurement of conductive media is critical.

Country of Origin

Made in Germany by ABB Automation Products GmbH.

CO2 Impact

Choosing this pre-owned flowmeter helps save approximately 90 kg of CO2 emissions compared to manufacturing a new one. This saving is equivalent to driving a car for 450 km.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Electromagnetic flowmeters are designed to measure the flow of electrically conductive liquids. This includes water, acids, alkalis, and slurries. They cannot be used for non-conductive fluids like oils, hydrocarbons, or deionized water.

These materials define the wetted parts of the sensor. PTFE (Polytetrafluoroethylene) is the liner, known for its excellent chemical resistance and non-stick properties. Hastelloy C-4 is the material for the electrodes, an alloy highly resistant to a wide range of corrosive chemicals, making the meter suitable for aggressive media.

The COPA-XE series is an older model. While some versions had optional outputs, standard models typically provided a 4-20mA analog signal and/or pulse output. Advanced digital communication protocols like HART or Profibus were not standard features on this base model. Always verify the exact output configuration needed for your application.
