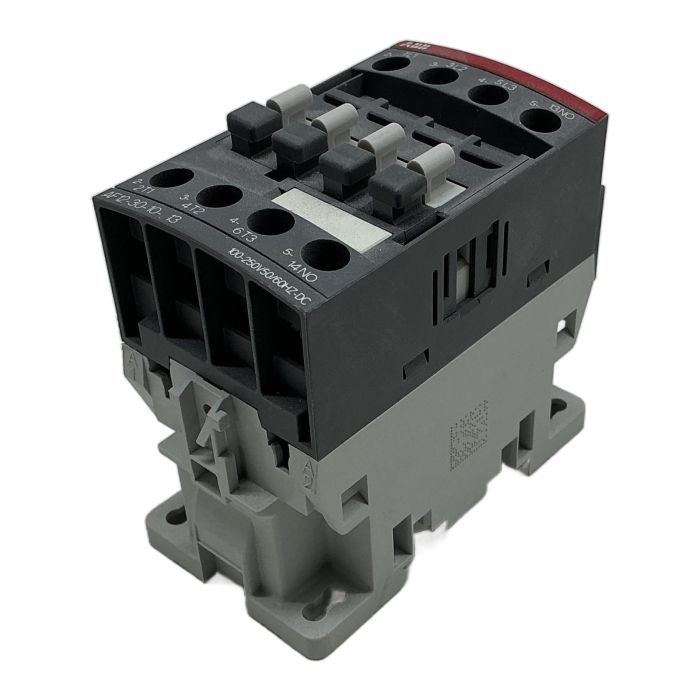

ABB AF30-30-00-13 3-Pole Contactor

Description

The ABB AF30-30-00-13 is a high-performance 3-pole contactor designed for a variety of industrial applications, primarily for controlling motors. It features ABB's advanced AF technology with an electronic coil that accommodates a wide voltage range of 100-250V AC/DC. This ensures reliable switching even with unstable control voltages and significantly reduces panel energy consumption.

Specifications

• Manufacturer: ABB
• Model: AF30-30-00-13
• Order Code: 1SBL277001R1300
• Number of Poles: 3
• Rated Operational Power (AC-3, 400V): 15 kW
• Rated Operational Current (AC-3, 400V): 32 A
• Rated Conventional Thermal Current (AC-1, Ith): 50 A
• Coil Voltage: 100-250 V 50/60 Hz / DC
• Auxiliary Contacts: 0 Normally Open, 0 Normally Closed
• Terminal Type: Screw Terminals

Label Info

• EAN: 3471523111233
• Standards: IEC/EN 60947-4-1, UL, CSA

Application

This contactor is ideal for motor starting, isolation, and distribution applications. It is commonly used in HVAC systems, pump control, industrial machinery, and commercial buildings where reliable power switching is critical.

Country of Origin

Made in France.

CO2 Impact

Opting for this pre-owned component saves approximately 14.0 kg of CO2 emissions compared to manufacturing a new one. This saving is equivalent to the CO2 captured by over 0.6 trees in a year.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The electronic coil provides a wide operational voltage range (100-250V AC/DC), ensuring reliable performance despite voltage fluctuations or drops. It also has significantly lower energy consumption compared to conventional coils.

Yes. The '-00' in the model number indicates it has no built-in auxiliary contacts. However, it is designed to accept front or side-mounted auxiliary contact blocks, which can be purchased separately to meet your specific needs.

According to the ABB datasheet, the recommended tightening torque for the main power circuits is 2.5 Nm, and for the coil termination terminals, it is 1.2 Nm.
