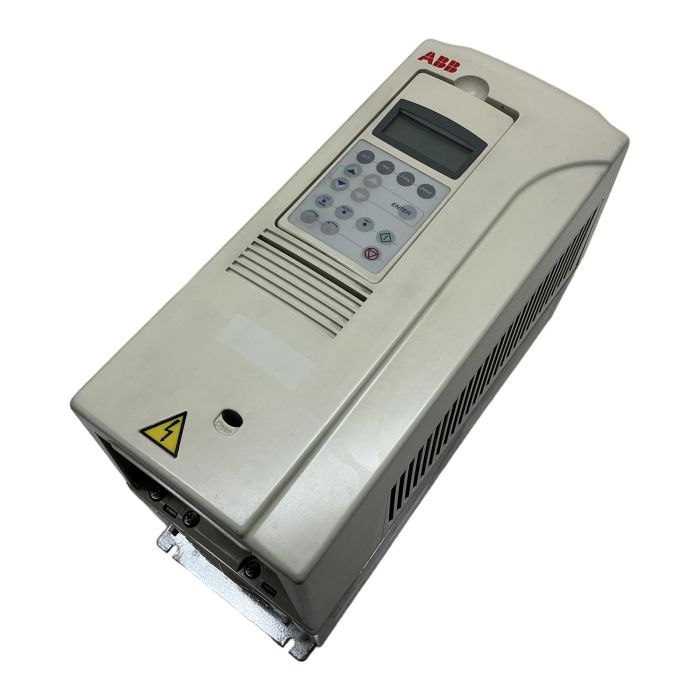

ABB ACS800-01 11kW Industrial Frequency Drive

Description

The ABB ACS800-01-0020-3+E202+P901 is a high-performance, wall-mounted AC drive designed for comprehensive motor control in a wide range of industrial applications. It delivers 11 kW of power in heavy-duty operation and features advanced control technology for precise speed and torque regulation. This unit is equipped with an integrated EMC filter (+E202) for compliance with C2 industrial standards and has coated boards (+P901) for extra protection in harsh environments.

Specifications

• Manufacturer: ABB
• Series: ACS800
• Model: ACS800-01-0020-3+E202+P901
• Power Rating (Heavy-Duty): 11 kW
• Power Rating (Light-Overload): 15 kW
• Input Voltage: 3-phase, 380 to 415 V
• Output Current: 34 A
• Output Frequency: 0 to 300 Hz
• Protection Class: IP21, NEMA 1
• Control Panel: Included (removable)

Label Info

• Input: 3~ 380...415 V, 32 A, 48...63 Hz
• Output: 3~ 0...Uinput V, 34 A, 0...300 Hz
• Serial Number: 1041200677

Application

This drive is ideal for controlling AC motors in applications such as pumps, fans, conveyors, mixers, and extruders where reliability and precise control are critical.

Country of Origin

Made in Finland.

CO2 Impact

By purchasing this pre-owned drive, you are preventing the emission of approximately 720 kg of CO2. This saving is equivalent to driving a car for 3600 kilometers.

Availability

This unit is a tested, used item in excellent working condition. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the difference between the heavy-duty (11 kW) and light-overload (15 kW) ratings for this ACS800 drive?

The heavy-duty rating (11 kW, 25 A) is for applications with high starting torque or frequent load changes, like cranes or extruders. The light-overload rating (15 kW, 34 A) is suitable for applications with stable loads, such as pumps and fans, where brief overloads are less common.

The +E202 option provides an integrated EMC filter compliant with C2 classification for the 2nd environment (industrial). For most standard industrial installations, this is sufficient. However, for applications in the 1st environment (residential/commercial) or those with extremely strict EMC requirements, an additional external filter might be necessary.

Yes, the control panel (ACS-CP-A) is removable. It can be replaced with another compatible control panel from the same series. ABB also provides blank cover plates (e.g., part number ACS-CP-D) if you prefer to operate the drive remotely via fieldbus or I/O and want to protect the empty slot.
