ABB ACS800 Series Frequency Inverter

Description

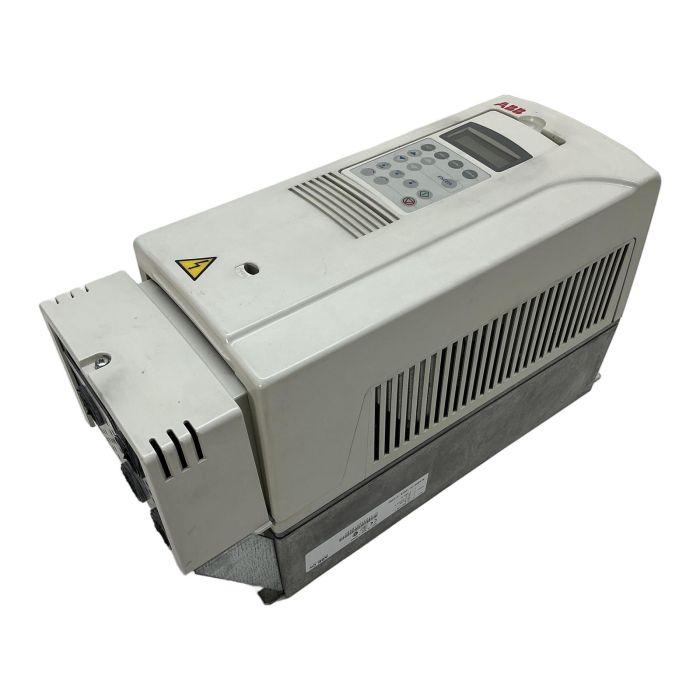

The ABB ACS800-01-0016-3+E200 is a high-performance, wall-mounted AC drive designed for industrial applications. With a power rating of 7.5 kW and a voltage range of 380-415V, this drive offers exceptional motor control through its renowned Direct Torque Control (DTC) technology. This model includes the advanced CDP 312R control panel for intuitive operation and the +E200 option for an integrated EMC filter, making it a comprehensive solution for demanding environments.

Specifications

• Power Rating: 7.5 kW
• Input Voltage: 3-phase 380...415 V
• Input Frequency: 48...63 Hz
• Output Current: 25 A (Maximum)
• Output Frequency: 0...300 Hz
• Enclosure: IP21 / UL Type 1 / NEMA 1
• Control Technology: Direct Torque Control (DTC)
• Control Panel: CDP 312R

Label Info

• Model: ACS800-01-0016-3+E200
• Serial Number: 1034201868
• Input: 3~ 380...415V, 23 A, 48...63 Hz
• Output: 3~ 0...Uinput V, 25 A, 0...300 Hz

Application

This drive is perfectly suited for applications requiring precise speed and torque control, such as pumps, fans, conveyors, mixers, and extruders in industries like manufacturing, water/wastewater, and material handling.

Country of Origin

Made in Finland.

CO2 Impact

Choosing this refurbished ABB drive over a new one prevents the emission of approximately 520 kg of CO2. This saving is comparable to driving a standard car for 2600 kilometers.

Availability

This is an obsolete item, but available from our stock. Limited quantities available. Order now from PLC2Day for expert support and fast delivery.

FAQ

Yes, the ACS800-01 has option slots for various fieldbus adapter modules. You can replace the existing module or add one if the slot is free. Common options include Profibus, DeviceNet, and Ethernet/IP. Ensure the firmware version of the drive is compatible with the new adapter module.

The +E200 option code indicates that this drive is equipped with a built-in RFI filter for the 2nd Environment, Category C3, according to EN 61800-3. This helps to reduce electromagnetic emissions and is suitable for most industrial environments.

Yes, parameters can be transferred using the CDP 312R control panel. You can upload the entire parameter set from the old drive to the panel's memory and then download it to the replacement drive. It is crucial to ensure both drives have compatible firmware versions to avoid parameter conflicts.
