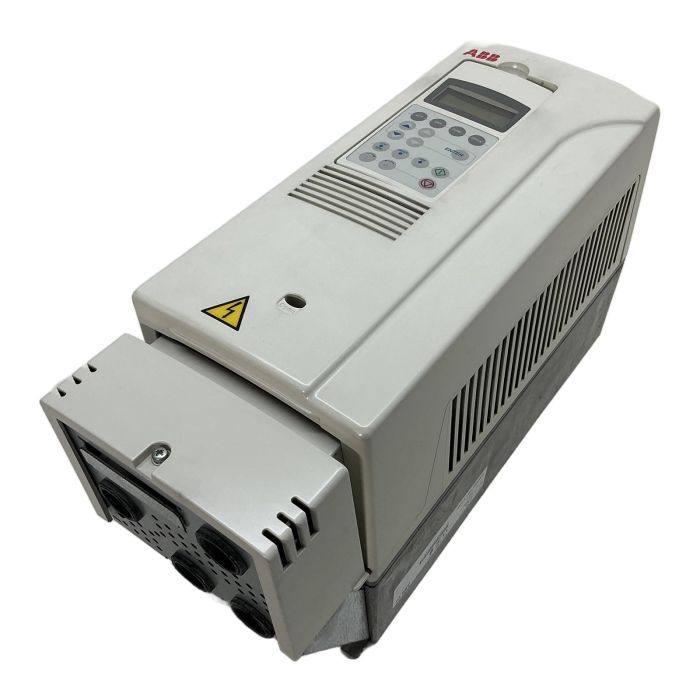

ABB ACS800-01-0011-3+E200 Frequency Drive

Description

The ABB ACS800-01-0011-3+E200 is a high-performance, wall-mounted AC drive designed for industrial motor control applications. Part of the renowned ACS800 series, it provides precise and dynamic control of motor speed and torque, thanks to ABB's Direct Torque Control (DTC) technology. This 5.5 kW unit is suitable for a wide range of machinery, from pumps and fans to conveyors and mixers. This unit includes the +E200 option for an integrated EMC filter and is supplied with a detachable CDP 312R control panel.

Specifications

• Power Rating: 5.5 kW (Heavy-Duty)
• Input Voltage: 3-phase 380 to 415 V AC
• Output Voltage: 3-phase 0 to Input V AC
• Enclosure Rating: IP21 / UL Type 1 / NEMA 1
• Control Technology: Direct Torque Control (DTC)
• Control Panel: Includes removable CDP 312R panel (Type: CDP 312R, Code: 64378660F)
• Option Code: +E200 (EMC filter, C3)

Label Info

• Input: 3~ 380...415 V, 17 A, 48...63 Hz
• Output: 3~ 0...Uinput V, 19 A, 0...300 Hz
• Serial Number: 1034201870

Application

Ideal for controlling AC induction motors in various industrial settings including manufacturing, HVAC, water/wastewater, and material handling. Its robust design ensures reliability in demanding environments.

Country of Origin

Made in Finland.

CO2 Impact

Choosing this pre-owned drive over a new one saves approximately 210 kg of CO2, which is comparable to the emissions from driving a car for 1050 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Direct Torque Control (DTC) is ABB's signature motor control technology. It provides highly accurate and rapid torque and speed control without the need for an encoder on the motor shaft. This results in superior process control, reduced mechanical stress, and reliable operation even with sudden load changes.

Yes, the drive can be operated without the control panel attached. Once the parameters are set, the panel can be removed. The drive can then be controlled via its I/O terminals (start/stop signals, speed reference) or through a fieldbus communication network if a corresponding adapter is installed.

The type designation `ACS800-01-0011-3` corresponds to a nominal heavy-duty power rating of 5.5 kW with a nominal current of around 12.4A. The 19A listed on the label likely represents the maximum intermittent or overload current capacity of the drive for short durations, a critical specification for applications with high starting torque requirements. Always program the motor data and protection parameters according to your specific motor's nameplate data.
