ABB Time Delayed Contactor Assembly

Description

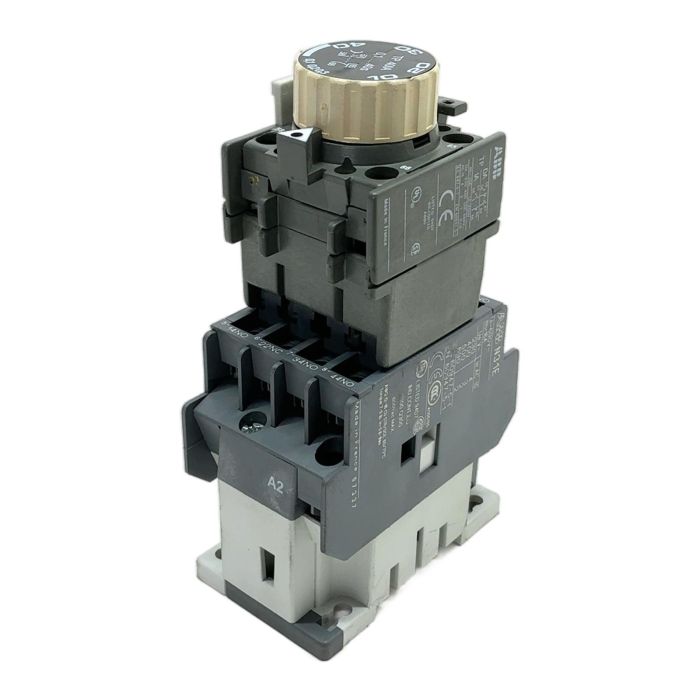

This is a complete, pre-assembled time-delayed contactor from ABB. The core of the unit is the robust A12-30-10 contactor, complemented by a TP40IA pneumatic timer, an N31E auxiliary contact block, and an RC5-1/250 surge suppressor. It is designed for controlling motors and other electrical loads where a specific on-delay or off-delay is required. The coil operates on a standard 230V AC supply.

Specifications

• Manufacturer: ABB
• Main Contactor: A12-30-10
• Coil Voltage: 220-230V 50Hz, 230-240V 60Hz
• Timer Module: TP40IA
• Time Range: 0.1 to 40 seconds
• Auxiliary Contact Block: N31E
• Surge Suppressor: RC5-1/250

Label Info

• Ith: 16A (for N31E)
• Ui: 690V
• Standards: IEC 60947-5-1, EN 60947-5-1

Application

Ideal for star-delta motor starters, process control timing, and any automation sequence requiring a reliable, adjustable time delay before switching a load.

Country of Origin

Made in France.

CO2 Impact

Opting for this reused component prevents approximately 14 kg of CO2 emissions, contributing to a more sustainable industrial environment.

Availability

This unit is an obsolete item but is available from our stock as a reliable spare part. Order now from PLC2Day for expert support and fast delivery.

FAQ

The TP40IA pneumatic timer has an adjustable time delay range from 0.1 seconds to 40 seconds, configured via the top-mounted dial.

This is sold as a pre-assembled unit containing the contactor, timer, auxiliary block, and surge suppressor, as shown in the images.

Yes, the coil on the ABB A-series contactors is replaceable. You would need to source the correct coil part number for your desired voltage and frequency.
